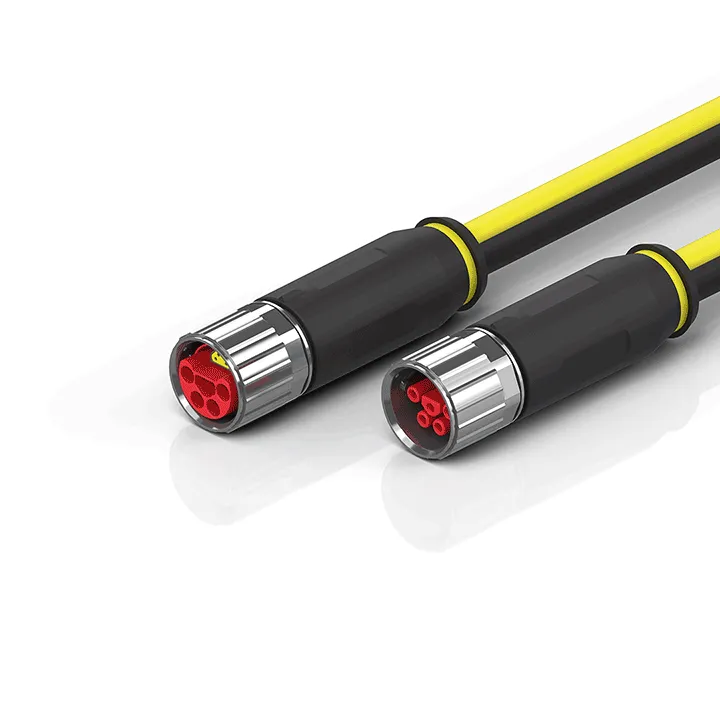

Beckhoff ZK7A30-3031-Bxxx
B23, ENP cable, PUR, 3 G 4.0 mm² + 2 x 1.5 mm² + (1 x 4 x AWG26), fixed installation, key 3 (user-defined voltage), XTS – ZK7A30-3031-Bxxx
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
B23, ENP cable, PUR, 3 G 4.0 mm² + 2 x 1.5 mm² + (1 x 4 x AWG26), fixed installation, key 3 (user-defined voltage), XTS – ZK7A30-3031-Bxxx
Specification
| Installation Size | B23 |
|---|---|
| Connector Type | plug |
| Contact Type | female+male |
| Number Of Positions (Face) | pins 4+PE+4 |
| Coding | EtherCAT-coded |
| Mating Cycles | ≥ 100 |
| Wire Termination | crimp connection |
| Operating Voltage | ≤ 300 V |
| Cross Section (Power) | 3 x 4.0 mm² (approx. AWG12) |
| Cross Section (Ethernet) | 1 x 4 x 0.14 mm² (AWG26) |
| Cross Section (Signal) | 2 x 1.5 mm² (approx. AWG16) |
| Use | fixed installation |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 10.9 mm ± 0.4 mm (0.429″ ± 0.0157″) |
| Min. Bending Radius, Moved | 15 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 7 x outer cable diameter |
| Max. Number Of Cycles | 0.1 million |
| Jacket Color | black (similar to RAL 9005) with yellow stripe (similar to RAL 1003) |
| A1 | 93.60 mm |
| A2 | 28.50 mm |
| B1 | 93.60 mm |
| B2 | 28.50 mm |
