Beckhoff ZK7A26-3031-0xxx

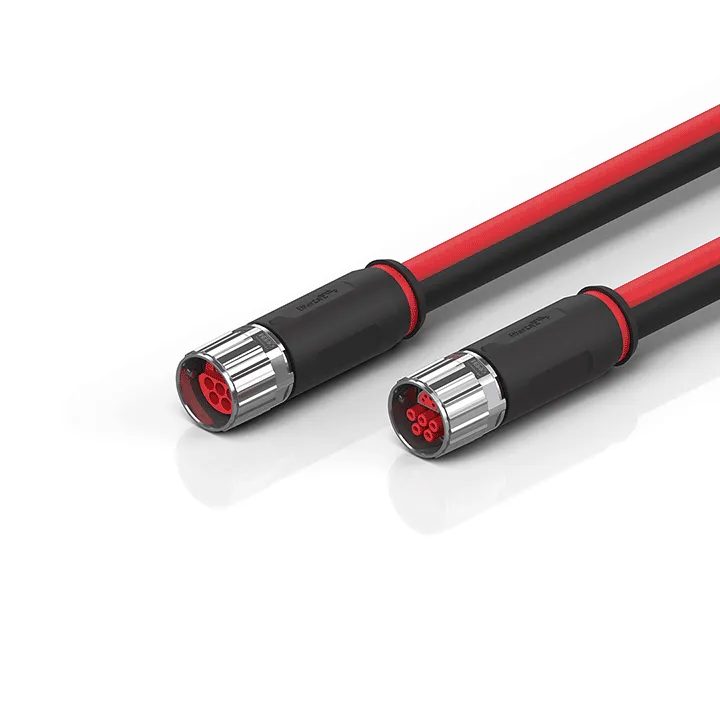

EtherCAT P cable, ECP, PUR, drag-chain suitable, B23, plug, straight, female+ female, pins 5+4, P-coded – B23, plug, straight, male+male, pins 5+4
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
EtherCAT P cable, ECP, PUR, drag-chain suitable, B23, plug, straight, female+ female, pins 5+4, P-coded – B23, plug, straight, male+male, pins 5+4
Specification
| Installation Size | B23 |
|---|---|
| Connector Type | plug |
| Contact Type | female+ female |
| Number Of Positions (Face) | pins 4+PE+4 |
| Coding | EtherCAT P-coded |
| Mating Cycles | ≥ 100 |
| Wire Termination | crimp connection |
| Operating Voltage | ≤ 1000 V AC |
| Cross Section (Power) | 3 x 2.5 mm² (approx. AWG14) + 2 x 1.5 mm² (approx. AWG16) |
| Cross Section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 11.9 mm ± 0.4 mm (0.469″ ± 0.0157″) |
| Min. Bending Radius, Moved | 7 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 4 x outer cable diameter |
| Max. Number Of Cycles | 5 million |
| Jacket Color | black (similar to RAL 9005) with red stripe (similar to RAL 3020) |
| A1 | 93.60 mm |
| A2 | 28.50 mm |
| B1 | 93.60 mm |
| B2 | 28.50 mm |
