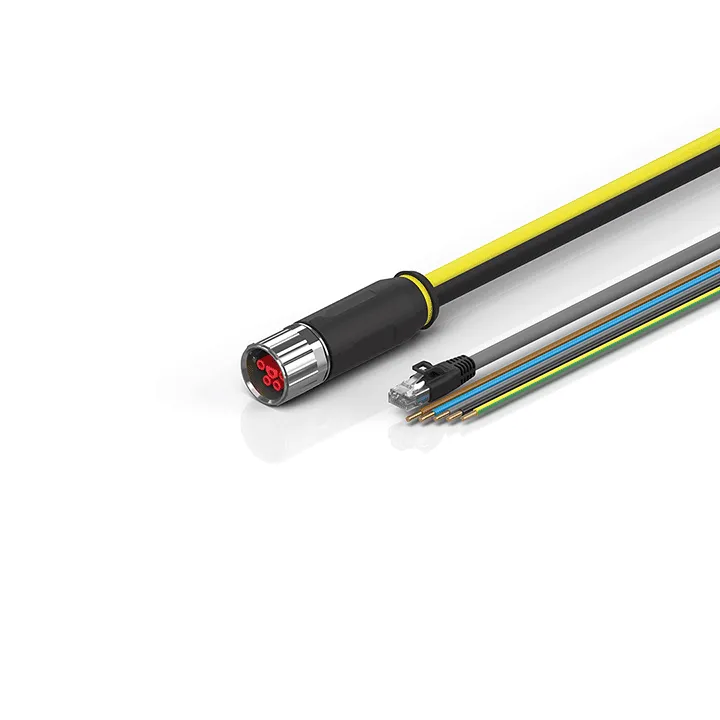

Beckhoff ZK7A14-3155-Axxx
EtherCAT/Ethernet cable, ENP, PUR, drag-chain suitable, B23, plug, straight, female+male, pins 5+4, EtherCAT-coded – 1 x RJ45, plug, straight | 1 x open
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
EtherCAT/Ethernet cable, ENP, PUR, drag-chain suitable, B23, plug, straight, female+male, pins 5+4, EtherCAT-coded – 1 x RJ45, plug, straight | 1 x open
Specification
| Installation Size | RJ45 |
|---|---|
| Connector Type | plug |
| Contact Type | male |
| Number Of Positions (Face) | 4-pin |
| Coding | EtherCAT-coded |
| Mating Cycles | ≥ 750 |
| Wire Termination | crimp connection |
| Shielding | yes |
| Rated Current | 1.5 A |
| Rated Voltage | 150 V |
| Operating Voltage | ≤ 1000 V AC |
| Cross Section (Power) | 5 x 4.0 mm² (approx. AWG12) |
| Cross Section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 15.0 mm ± 0.2 mm (0.5906″ ± 0.0118″) |
| Min. Bending Radius, Moved | 7 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 4 x outer cable diameter |
| Max. Number Of Cycles | 5 million |
| Jacket Color | black (similar to RAL 9005) with yellow stripe (similar to RAL 1003) |
| A1 | 93.60 mm |
| A2 | 28.50 mm |
| B1 | 200.0 mm |
| B2 | 43.8 mm |
