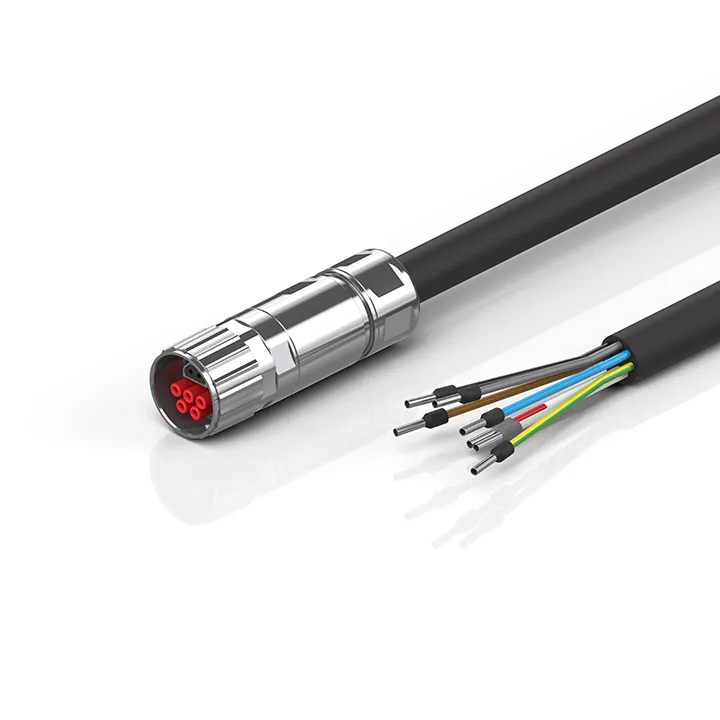

Beckhoff ZK7672-3100-3xxx
B17 plug, straight, female+female, 5+2 pin, – open
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
B17 plug, straight, female+female, 5+2 pin, – open
Specification
| Installation Size | open end |
|---|---|
| Connector Type | plug |
| Contact Type | female+ female |
| Number Of Positions (Face) | pins 5+2 |
| Mating Cycles | ≥ 100 |
| Wire Termination | ferrules |
| Cross Section | 2 x 0.75 mm² (AWG18) + 5 x 1.5 mm² (AWG16) |
| Use | fixed installation |
| Material Jacket | PVC (polyvinyl chloride) |
| Outer Cable Diameter | 12.4 mm ± 0.3 mm (0.4882″ ± 0.0118″) |
| Min. Bending Radius, Moved | 10 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Jacket Color | black (similar to RAL9005) |
| C E | yes |
