Beckhoff ZK7502-0600-0xxx

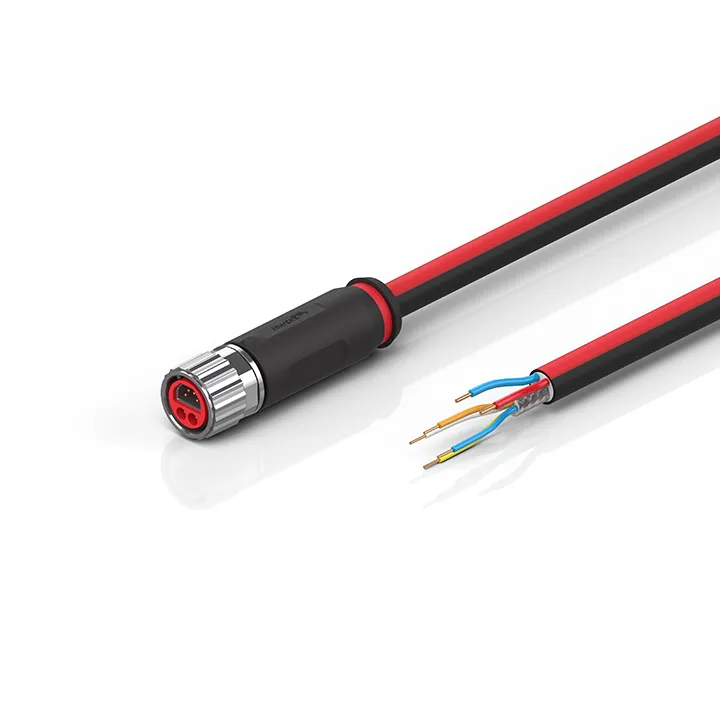

B12, ECP cable, PUR, 2 x 0.75 mm² + (1 x 4 x AWG22), drag-chain suitable, key 2 (user-defined voltage) – ZK7502-0600-0xxx
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
B12, ECP cable, PUR, 2 x 0.75 mm² + (1 x 4 x AWG22), drag-chain suitable, key 2 (user-defined voltage) – ZK7502-0600-0xxx
Specification
| Installation Size | M8 P-coded + 2 x open end |
|---|---|
| Connector Type | plug |
| Contact Type | male |
| Number Of Positions (Face) | 4-pin |
| Coding | EtherCAT P-coded |
| Mating Cycles | ≥ 100 |
| Wire Termination | crimp connection |
| Recommended Torque, Nut | 0.4 Nm |
| Operating Voltage | ≤ 1000 V AC |
| Cross Section (Power) | 2 x 0.75 mm² (approx. AWG18) |
| Cross Section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 9.0 mm ± 0.2 mm (0.3543″ ± 0.0079″) |
| Min. Bending Radius, Moved | 7 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 4 x outer cable diameter |
| Max. Number Of Cycles | 3 million |
| Jacket Color | black (similar to RAL 9005) with red stripe (similar to RAL 3020) |
| C E | yes |
| A1 | 64.60 mm |
| A2 | 18.00 mm |
| B1 | 41.00 mm |
