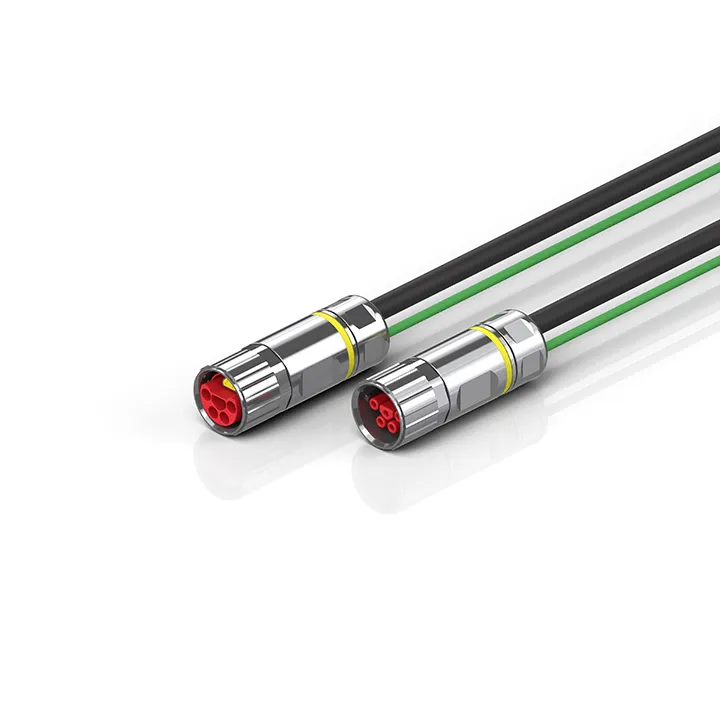

Beckhoff ZK7370-3031-Axxx
EtherCAT/Ethernet cable, ENP, PUR, drag-chain suitable, B23, plug, straight, female+male, pins 5+4, EtherCAT-coded – B23, plug, straight, male+female, pins 5+4
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
EtherCAT/Ethernet cable, ENP, PUR, drag-chain suitable, B23, plug, straight, female+male, pins 5+4, EtherCAT-coded – B23, plug, straight, male+female, pins 5+4
Specification
| Shielding | yes |
|---|---|
| Installation Size | B23 |
| Connector Type | plug |
| Contact Type | female+male |
| Number Of Positions (Face) | pins 4+PE+4 |
| Coding | EtherCAT-coded |
| Mating Cycles | ≥ 100 |
| Wire Termination | crimp connection |
| Max. Wire Cross Section (Power) | AWG12/4.0 mm² |
| Max. Wire Cross Section (Ethernet) | AWG22/0.34 mm² |
| Max. Cable Outer Diameter | 15.0…16.0 mm |
| Operating Voltage | max. 1000 V AC (UL) |
| Cross Section | 5 G 4 mm² (AWG12) |
| Use | fixed installation |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 3.65 mm ± 0.15 mm (0.1496″ ± 0.0059″) |
| Min. Bending Radius, Moved | 15 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 8 x outer cable diameter, 2.5 x outher cable diameter (fixed with single bend) |
| Jacket Color | green |
| Cross Section (Ethernet) | 1 x 4 x 0.14 mm² (AWG26) |
| C E | yes |
| U L | yes UL2237, UL E-file number: E484763 |
| A1 | ca. 80.0 mm |
| A2 | 29.0 mm |
| B1 | approx. 80.0 mm |
| B2 | 29.0 mm |
