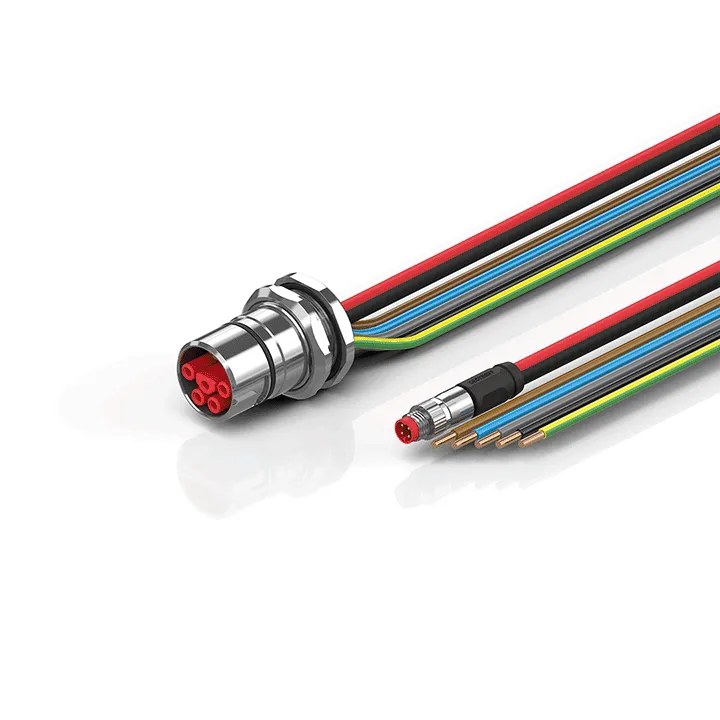

Beckhoff ZK7314-BY00-0xxx
B23, flange, straight, long, female+female, pins 4+PE+4, rear assembly, P-coded – 1 x M8, plug, straight | 1 x open
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
B23, flange, straight, long, female+female, pins 4+PE+4, rear assembly, P-coded – 1 x M8, plug, straight | 1 x open
Specification
| Installation Size | open end |
|---|---|
| Connector Type | plug |
| Contact Type | male |
| Number Of Positions (Face) | 5-wire |
| Coding | EtherCAT P-coded |
| Mating Cycles | ≥ 100 |
| Wire Termination | crimp connection |
| Shielding | yes |
| Rated Current | 3 A at 40°C (according to IEC 61076-2-104) |
| Rated Voltage | 24 V DC (according to IEC 61076-2-104) |
| Recommended Torque, Nut | 0.4 Nm |
| Operating Voltage | ≤ 125 V (peak value, not for high voltage purposes) |
| Cross Section (Power) | 5 x 4.0 mm² (approx. AWG12) |
| Cross Section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 6.5 mm ± 0.2 mm (0.2559″ ± 0.0079″) |
| Min. Bending Radius, Moved | 8 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Max. Number Of Cycles | 3 million |
| Jacket Color | black (similar to RAL 9005) with red stripe (similar to RAL 3020) |
| C E | yes |
| A1 | 42.50 mm |
| A2 | 30.00 mm |
| A3 | 23.80 mm |
| A4 | 37.50 mm |
| A5 | M25 |
| B1 | 41.00 mm |
