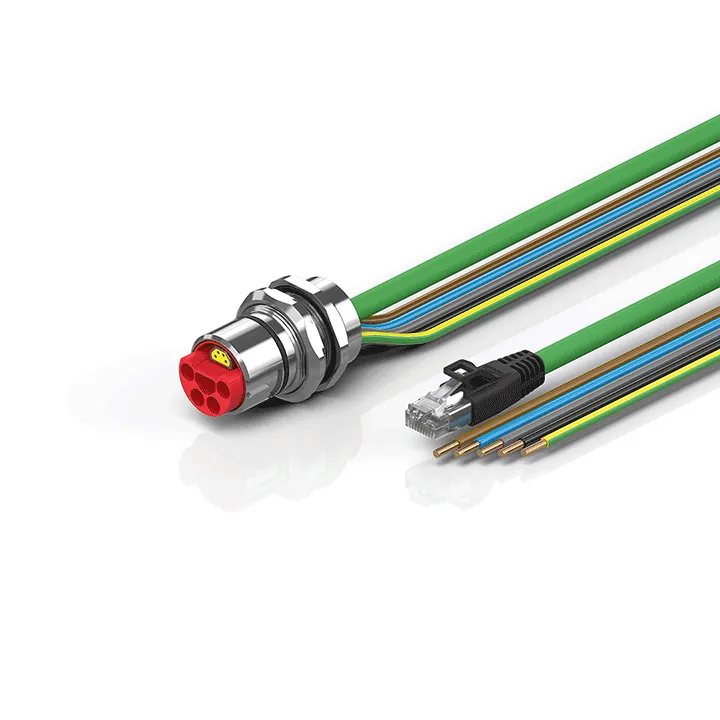

Beckhoff ZK7314-AV00-Axxx
B23, flange, straight, short, male+female, pins 4+PE+4, rear assembly, EtherCAT-coded – RJ45 + 5 x open end
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
B23, flange, straight, short, male+female, pins 4+PE+4, rear assembly, EtherCAT-coded – RJ45 + 5 x open end
Specification
| Installation Size | open end |
|---|---|
| Connector Type | plug |
| Contact Type | male |
| Number Of Positions (Face) | 5-wire |
| Coding | EtherCAT-coded |
| Mating Cycles | ≥ 750 |
| Wire Termination | crimp connection |
| Shielding | yes |
| Rated Current | 1.5 A |
| Rated Voltage | 150 V |
| Cross Section (Power) | 5 x 4.0 mm² (approx. AWG12) |
| Cross Section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 6.5 mm ± 0.2 mm (0.2559″ ± 0.0079″) |
| Min. Bending Radius, Moved | 7.5 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Max. Number Of Cycles | 3 million |
| Jacket Color | green |
| C E | yes |
| U L | yes UL2237, UL E-file number: E484763 |
| A1 | 47.50 mm |
| A2 | 30.00 mm |
| A3 | 25.00 mm |
| A4 | 35.30 mm |
| A5 | 7.20 mm |
| A6 | M25 |
| B1 | 43.80 mm |
