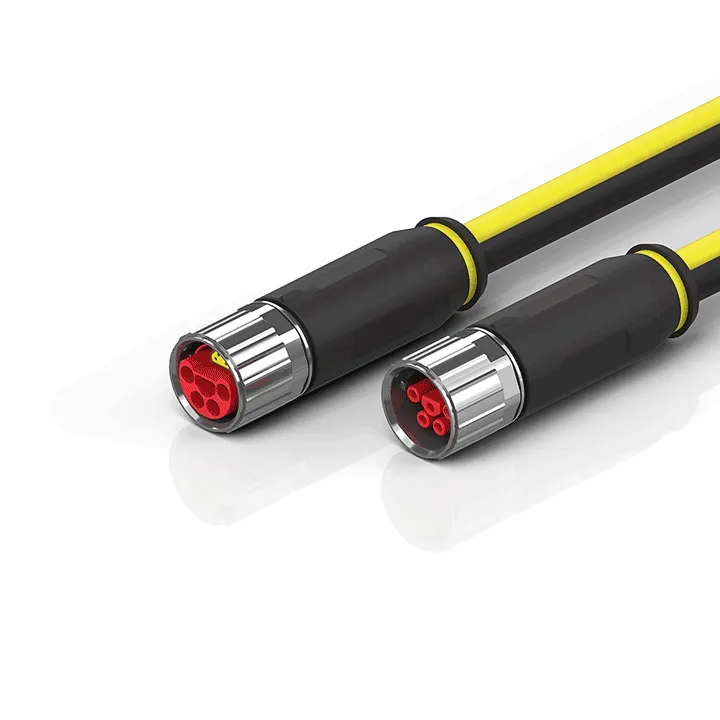

Beckhoff ZK7314-3031-Cxxx
EtherCAT/Ethernet cable, ENP, PVC, fixed installation, B23, plug, straight, female+male, pins 5+4, EtherCAT‑coded – B23, plug, straight, male+female, pins 5+4
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
EtherCAT/Ethernet cable, ENP, PVC, fixed installation, B23, plug, straight, female+male, pins 5+4, EtherCAT‑coded – B23, plug, straight, male+female, pins 5+4
Specification
| Installation Size | B23 |
|---|---|
| Connector Type | plug |
| Contact Type | female+male |
| Number Of Positions (Face) | pins 4+PE+4 |
| Coding | EtherCAT-coded |
| Mating Cycles | ≥ 100 |
| Wire Termination | crimp connection |
| Operating Voltage | ≤ 1000 V AC |
| Cross Section (Power) | 5 x 4.0 mm² (approx. AWG12) |
| Cross Section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | fixed installation |
| Material Jacket | PVC (polyvinyl chloride) |
| Outer Cable Diameter | 13.8 mm ± 0.2 mm (0.543″ ± 0.0079″) |
| Min. Bending Radius, Moved | 7 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Jacket Color | black (similar to RAL 9005) with yellow stripe (similar to RAL 1003) |
| C E | yes |
| U L | yes UL2237, UL E-file number: E484763 |
| A1 | 93.60 mm |
| A2 | 28.50 mm |
| B1 | 93.60 mm |
| B2 | 28.50 mm |
