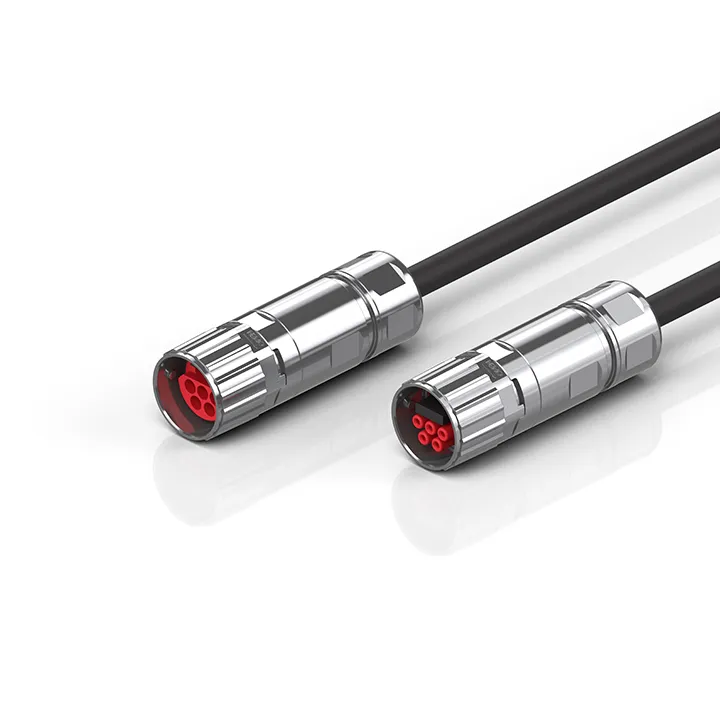

Beckhoff ZK7231-3031-0xxx
Power cable, IP67, 5 G 1.5 mm², PUR, drag chain suitable, mechanical coding 1, B17, plug, straight, male + blanking plug, pins 5, power – B17, plug, straight, female + blanking plug, pins 5
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power cable, IP67, 5 G 1.5 mm², PUR, drag chain suitable, mechanical coding 1, B17, plug, straight, male + blanking plug, pins 5, power – B17, plug, straight, female + blanking plug, pins 5
Specification
| Installation Size | B17 |
|---|---|
| Connector Type | plug |
| Contact Type | female+blanking plug |
| Number Of Positions (Face) | pins 4+PE |
| Coding | Power |
| Mating Cycles | ≥ 100 |
| Wire Termination | crimp connection |
| Operating Voltage | ≤ 300 V |
| Cross Section | 5 G 1.5 mm² (approx. AWG16) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 7.80 ±0.05 mm |
| Min. Bending Radius, Moved | 6 x outer cable diameter |
| Max. Number Of Cycles | 2 million |
| Jacket Color | black |
| C E | yes |
| A1 | 73.60 mm |
| A2 | 23.00 mm |
| B1 | 73.60 mm |
| B2 | 23.00 mm |
