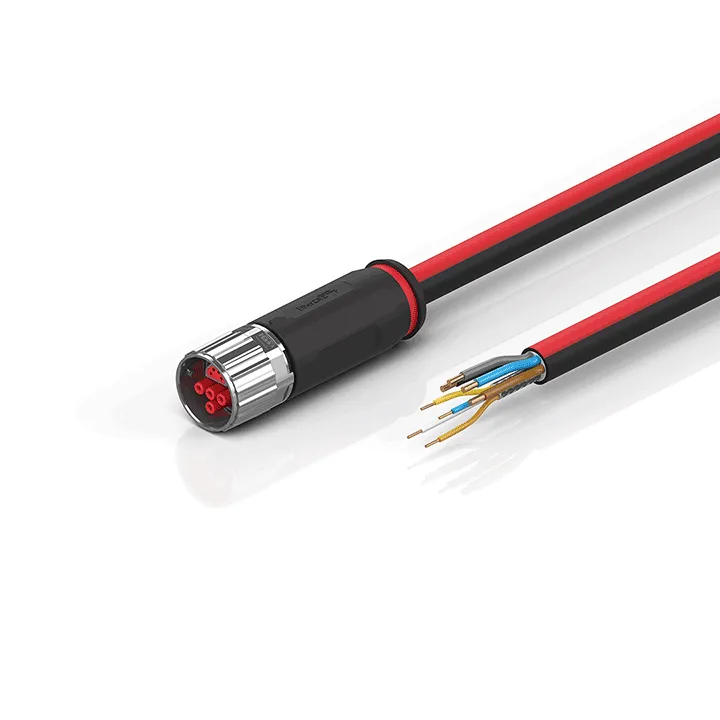

Beckhoff ZK7224-2500-0xxx
B17, plug, straight, female+ female, pins 4+4, P-coded – open
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
B17, plug, straight, female+ female, pins 4+4, P-coded – open
Specification
| Installation Size | open end |
|---|---|
| Connector Type | plug |
| Contact Type | female+ female |
| Number Of Positions (Face) | pins 4+4 |
| Coding | EtherCAT P-coded |
| Mating Cycles | ≥ 100 |
| Wire Termination | crimp connection |
| Operating Voltage | ≤ 1000 V AC |
| Cross Section (Power) | 4 x 1.5 mm² (approx. AWG16) |
| Cross Section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 10.8 mm ± 0.2 mm (“0.4252 ± 0.0079”) |
| Min. Bending Radius, Moved | 7 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 4 x outer cable diameter |
| Max. Number Of Cycles | 3 million |
| Jacket Color | black (similar to RAL 9005) with yellow stripe (similar to RAL 1003) |
| C E | yes |
| A1 | 73.60 mm |
| A2 | 23.00 mm |
