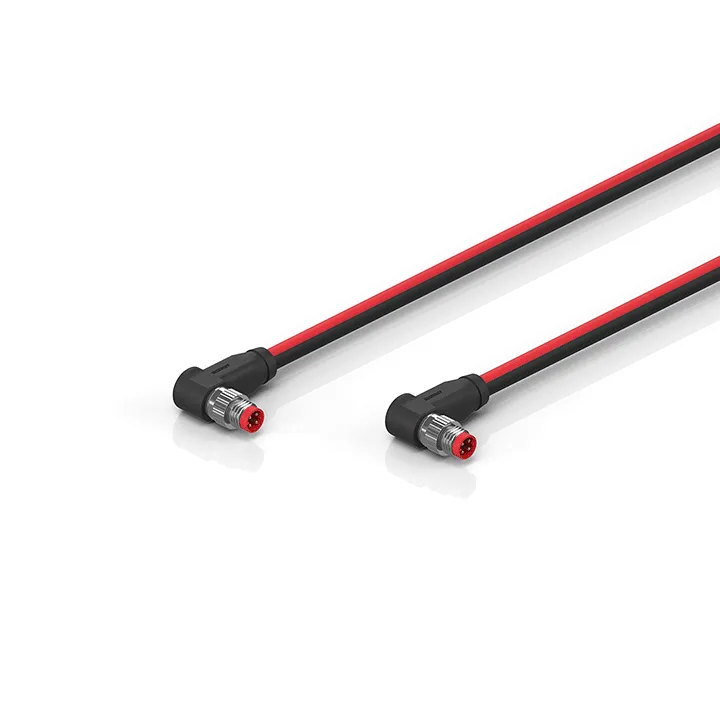

Beckhoff ZK7001-0303-2xxx
M8, plug, angled, male, 4-pin, P-coded – M8, plug, angled, male, 4-pin
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M8, plug, angled, male, 4-pin, P-coded – M8, plug, angled, male, 4-pin
Specification
| Shielding | yes |
|---|---|
| Installation Size | M8 |
| Connector Type | plug |
| Contact Type | male |
| Number Of Positions (Face) | 4-pin |
| Coding | EtherCAT P-coded |
| Rated Current | 3 A at 40°C (according to IEC 61076-2-104) |
| Rated Voltage | 24 V DC (according to IEC 61076-2-104) |
| Recommended Torque, Nut | 0.4 Nm |
| Mating Cycles | ≥ 100 |
| Operating Voltage | ≤ 300 V |
| Cross Section (Ethernet) | 1 x 4 x 0.25 mm² (AWG24) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 5.7 mm ± 0.3 mm (0.2244″ ± 0.0118″) |
| Min. Bending Radius, Moved | 10 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 4 x outer cable diameter |
| Max. Number Of Cycles | 10 million with R = 90 mm, 5 million with R = 60 mm, 2 million with R = 40 mm, 5 million with 30 x D (v = 2 m/s, a = 30 m/s²) |
| Jacket Color | black (similar to RAL 9005) with red stripe (similar to RAL 3020) |
| A1 | 29.80 mm |
| A2 | 26.30 mm |
| B1 | 29.80 mm |
| B2 | 26.30 mm |
