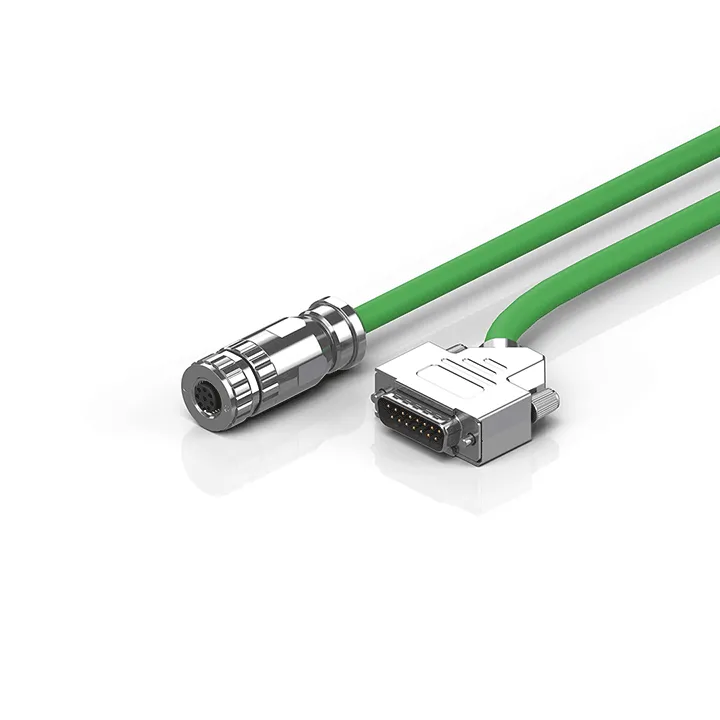

Beckhoff ZK4810-0020-xxxx
highly flexible, drag-chain suitable cable with 5 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 53 mm (7 x OD), max. drag-chain length horizontal = 20 m, vertical = 5 m,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
highly flexible, drag-chain suitable cable with 5 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 53 mm (7 x OD), max. drag-chain length horizontal = 20 m, vertical = 5 m, (4 x 2 x 0.34 mm² + 1 x 4 x 0.50 mm²) The cable is UL
Specification
| Installation Size | M12 |
|---|---|
| Connector Type | socket |
| Contact Type | female |
| Number Of Positions (Face) | 8-pin |
| Wire Termination | screw connection |
| Shielding | yes |
| Coding | A‑coded |
| Rated Current | 2 A at 40°C (according to IEC 61076-2-101) |
| Rated Voltage | 30 V (according to IEC 61076-2-101) |
| Recommended Torque, Nut | 0.6 Nm |
| Mating Cycles | ≥ 100 (according to IEC 60512-9a) |
| Max. Wire Cross Section | AWG20 (0.5 mm²) |
| Max. Cable Outer Diameter | 4.0…8 mm |
| Operating Voltage | 30 V |
| Cross Section | 2 x 2 x 0.20 mm² + 1 x 2 x 0.38 mm² |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 6.95 ± 0.15 mm |
| Min. Bending Radius, Fixed Installation | 35 mm |
| Max. Number Of Cycles | 10 million |
| Jacket Color | green |
| A1 | 40.00 mm |
| A2 | 41.00 mm |
| B1 | approx. 54 mm |
| B2 | Ø 20.00 mm |
