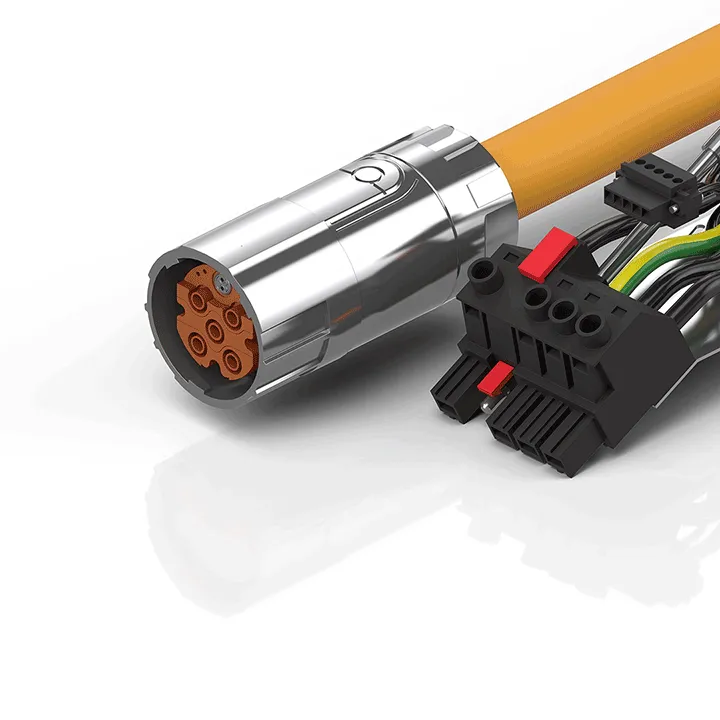

Beckhoff ZK4800-8526-xxxx
Highly flexible, drag-chain suitable cable with 5 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 111 mm (7 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Highly flexible, drag-chain suitable cable with 5 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 111 mm (7 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x 4 mm² + (2 x 1 mm²) + (2 x AWG22)). The cable is UL
Specification
| Installation Size | Pitch dimension 3.50 mm |
|---|---|
| Connector Type | plug |
| Contact Type | female |
| Number Of Positions (Face) | 5-pin |
| Mating Cycles | 25 |
| Wire Termination | Clamping yoke connection |
| Max. Wire Cross Section | AWG28 … AWG14 (0.2 mm² … 1.5 mm²) |
| Operating Voltage | max. 1000 V AC (UL), Uo/U 600/1000 V (VDE) |
| Cross Section (Power) | 6 mm² (approx. AWG10) |
| Cross Section (Signal) | AWG22 (approx. 0.34 mm²) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 18.0 mm ± 0.4 mm (0.7087″ ± 0.0157″) |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Max. Number Of Cycles | 5 million |
| Jacket Color | orange |
| A1 | 100.00 mm |
| A2 | 46.00 mm |
| B1 | 137.00 mm |
| B2 | 52.00 mm |
| C1 | 19.00 mm |
| C2 | 25.00 mm |
