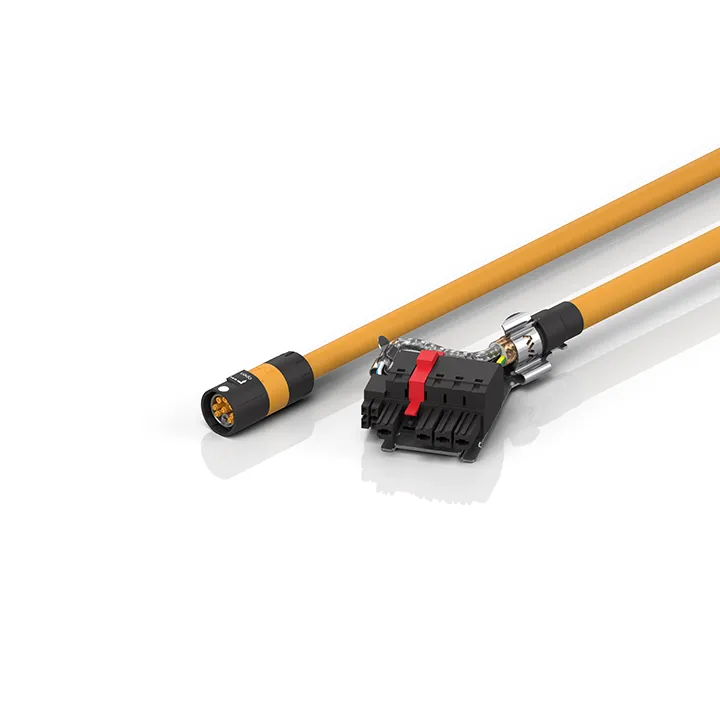

Beckhoff ZK4800-8062-xxxx
highly flexible, torsion-resistant cable with 2 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 144 mm (12 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
highly flexible, torsion-resistant cable with 2 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 144 mm (12 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x 1 mm² + (2 x 0.75 mm²) + (2 x AWG22)). The cable is
Specification
| Installation Size | Pitch dimension 7.62 mm |
|---|---|
| Connector Type | plug |
| Contact Type | female |
| Number Of Positions (Face) | 4-pin |
| Mating Cycles | 25 |
| Wire Termination | Push-in |
| Max. Wire Cross Section | AWG24 … AWG8 (0.5 mm² … 10 mm²) |
| Operating Voltage | max. 1000 V AC (UL), Uo/U 600/1000 V (VDE) |
| Cross Section (Power) | 1.00 mm² (approx. AWG18) |
| Cross Section (Signal) | AWG22 (approx. 0.34 mm²) |
| Use | suitable for torsion/robotic application |
| Material Jacket | TPU (thermoplastic polyurethane) |
| Outer Cable Diameter | 12.0 mm ± 0.2 mm (0.472″ ± 0.0079″) |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Max. Number Of Cycles | 2 million |
| Jacket Color | orange |
| A1 | 44.00 mm |
| A2 | 19.00 mm |
| B1 | 60.00 mm |
| B2 | 47.00 mm |
