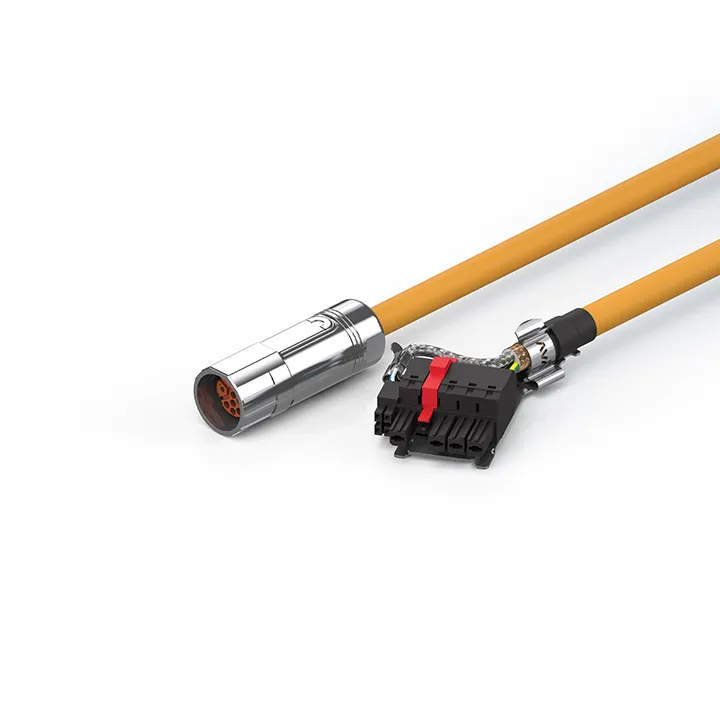

Beckhoff ZK4800-8024-xxxx
highly flexible, drag-chain suitable cable with 5 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 97 mm (7 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
highly flexible, drag-chain suitable cable with 5 million bending cycles, max. 240 m/min, max. 30 m/s², min. bending radius = 97 mm (7 x OD), max. drag-chain length horizontal 20 m, vertical 5 m, (4 x 2.5 mm² + (2 x 1 mm²) + (2 x AWG22)). The cable is UL
Specification
| Installation Size | Pitch dimension 7.62 mm |
|---|---|
| Connector Type | plug |
| Contact Type | female |
| Number Of Positions (Face) | 4-pin |
| Mating Cycles | 25 |
| Wire Termination | Push-in |
| Max. Wire Cross Section | AWG24…AWG8 (0.5 mm²…10 mm²) |
| Operating Voltage | max. 1000 V AC (UL), Uo/U 600/1000 V (VDE) |
| Cross Section (Power) | 2.50 mm² (approx. AWG14) |
| Cross Section (Signal) | AWG22 (approx. 0.34 mm²) |
| Use | drag-chain suitable |
| Material Jacket | TPU (thermoplastic polyurethane) |
| Outer Cable Diameter | 13.9 mm ± 0.4 mm (0.5472″ ± 0.0157″) |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Max. Number Of Cycles | 5 million |
| Jacket Color | orange |
| A1 | 79.00 mm |
| A2 | 28.00 mm |
| B1 | 60.00 mm |
| B2 | 47.00 mm |
