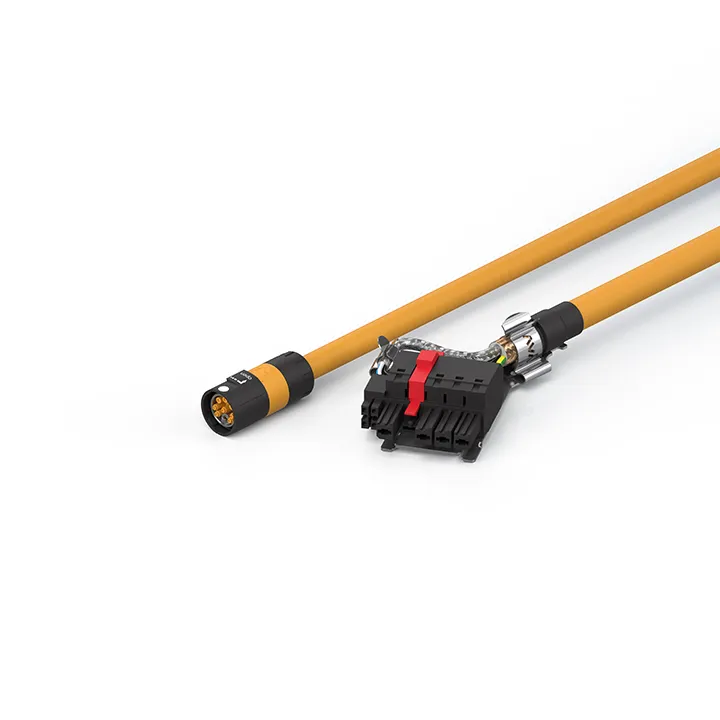

Beckhoff ZK4800-8002-xxxx
cables for fixed installation, min. bending radius = 50 mm (5 x OD), (4 x 1.0 mm² + (2 x 0.5 mm²) + (2 x AWG26)), max. cable length (in total) 25 m, vertical 5 m, The cable is UL and CSA listed. suita…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
cables for fixed installation, min. bending radius = 50 mm (5 x OD), (4 x 1.0 mm² + (2 x 0.5 mm²) + (2 x AWG26)), max. cable length (in total) 25 m, vertical 5 m, The cable is UL and CSA listed. suitable for: AM801x AM802x AM803x AM853x AX8000 up to 12 A
Specification
| Installation Size | Pitch dimension 7.62 mm |
|---|---|
| Connector Type | plug |
| Contact Type | female |
| Number Of Positions (Face) | 4-pin |
| Mating Cycles | 25 |
| Wire Termination | Push-in |
| Max. Wire Cross Section | AWG24…AWG8 (0.5 mm²…10 mm²) |
| Operating Voltage | max. 1000 V AC (UL) |
| Cross Section (Power) | 1.00 mm² (approx. AWG18) |
| Cross Section (Signal) | AWG26 (approx. 0.14 mm²) |
| Use | fixed installation |
| Material Jacket | PVC (polyvinyl chloride) |
| Outer Cable Diameter | 10.0 mm ± 0.3 mm (0.3937″ ± 0.0118″) |
| Min. Bending Radius, Fixed Installation | 4 x outer cable diameter |
| Jacket Color | orange |
| A1 | 44.00 mm |
| A2 | 19.00 mm |
| B1 | 60.00 mm |
| B2 | 47.00 mm |
