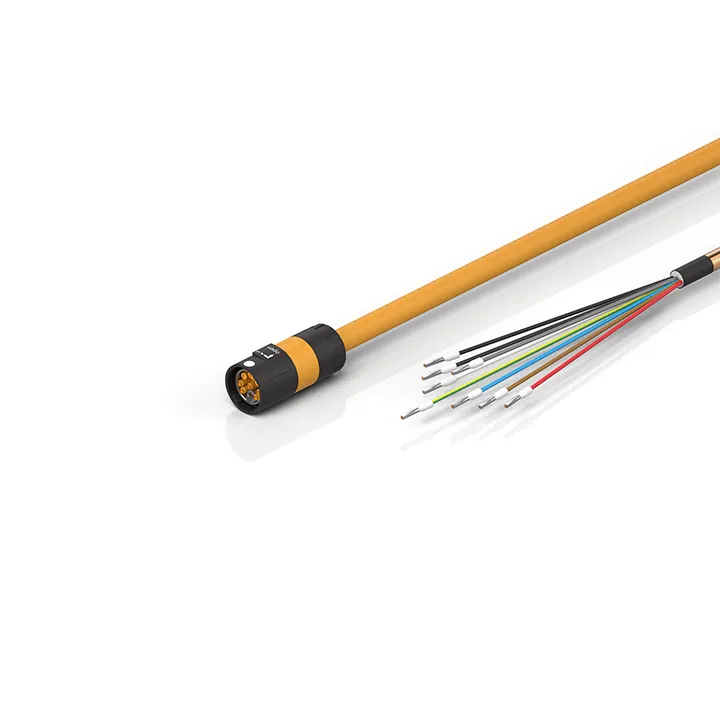

Beckhoff ZK4704-0421-2xxx
Motor cables for AM81xx servomotors to EL72xx-0010 and EL72xx-9014 servomotor terminal with OCT Motor cable with 0.75 mm² wire gauge, highly flexible, drag-chain
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Motor cables for AM81xx servomotors to EL72xx-0010 and EL72xx-9014 servomotor terminal with OCT Motor cable with 0.75 mm² wire gauge, highly flexible, drag-chain
Specification
| Installation Size | open end |
|---|---|
| Connector Type | plug |
| Contact Type | female |
| Number Of Positions (Face) | 8-wire + shield |
| Mating Cycles | 500 |
| Wire Termination | crimp connection |
| Operating Voltage | max. 300 V AC (UL), Uo/U 300/500 V (VDE) |
| Cross Section (Power) | 0.75 mm² (approx. AWG18) |
| Cross Section (Signal) | AWG22 (approx. 0.34 mm²) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 11.0 mm ± 0.4 mm (0.433″ ± 0.0157″) |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Max. Number Of Cycles | 5 million |
| Jacket Color | orange |
| A1 | 44.00 mm |
| A2 | 19.00 mm |
