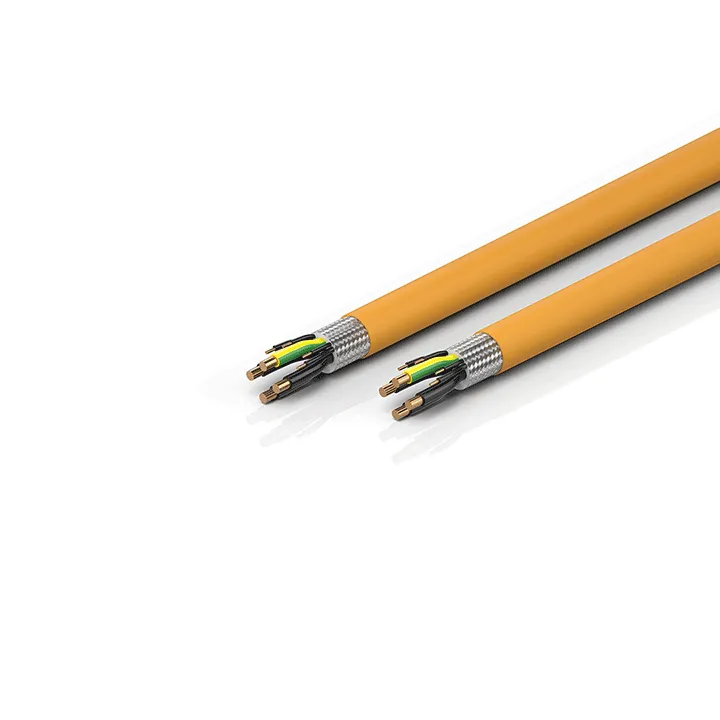

Beckhoff ZK4509-0016-0zzz
motor cable, not assembled, 6 mm², for AX5125, flexible, drag-chain suitable with 5 mio. bending cycles, (4 x 6 mm² + (2 x 1 mm²) + (2 x
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
motor cable, not assembled, 6 mm², for AX5125, flexible, drag-chain suitable with 5 mio. bending cycles, (4 x 6 mm² + (2 x 1 mm²) + (2 x
Specification
| Operating Voltage | max. 1000 V AC (UL) |
|---|---|
| Cross Section (Power) | 6 mm² (approx. AWG10) |
| Cross Section (Signal) | 1 mm² (approx. AWG18) |
| Use | drag-chain suitable |
| Material Jacket | TPU (thermoplastic polyurethane) |
| Outer Cable Diameter | 17.6 mm ± 0.4 mm (0.6929″ ± 0.0157″) |
| Min. Bending Radius, Fixed Installation | 4 x outer cable diameter |
| Max. Number Of Cycles | 10 million |
| Jacket Color | orange |
