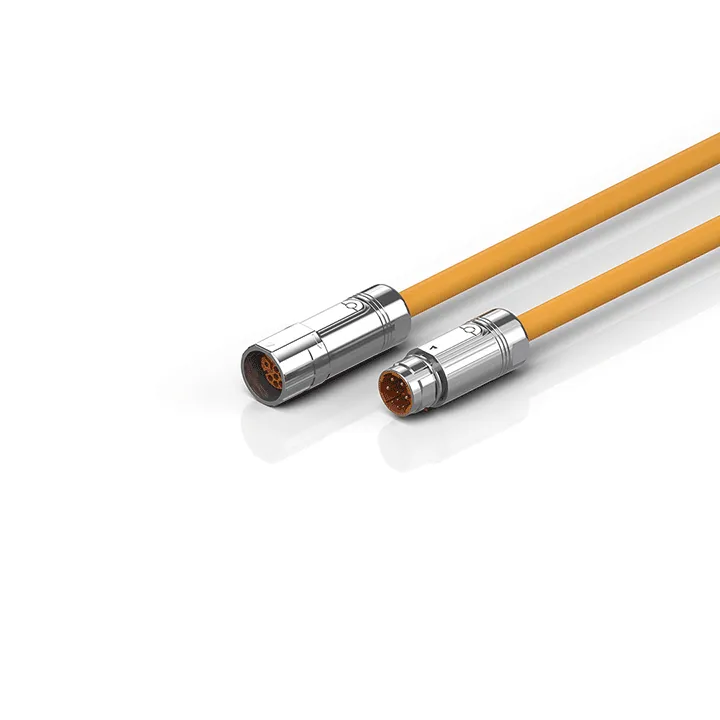

Beckhoff ZK4501-8003-xxxx
cables for fixed installation, min. bending radius = 61 mm (5 x OD), (4 x 1.5 mm² + (2 x 0.75 mm²) + (2 x AWG22)). The cable is UL and CSA listed. suitable for: ZK4800-8003-xxxx ZK4800-8023-xxxx ZK480…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
cables for fixed installation, min. bending radius = 61 mm (5 x OD), (4 x 1.5 mm² + (2 x 0.75 mm²) + (2 x AWG22)). The cable is UL and CSA listed. suitable for: ZK4800-8003-xxxx ZK4800-8023-xxxx ZK4800-8063-xxxx ZK4500-8003-xxxx ZK4500-8023-xxxx
Specification
| Installation Size | M23 |
|---|---|
| Connector Type | socket |
| Contact Type | male |
| Number Of Positions (Face) | Power: 3+PE, Signal: 5 |
| Mating Cycles | 500 |
| Wire Termination | crimp connection |
| Operating Voltage | max. 1000 V AC (UL) |
| Cross Section (Power) | 1.50 mm² (approx. AWG16) |
| Cross Section (Signal) | AWG22 (approx. 0.34 mm²) |
| Use | fixed installation |
| Material Jacket | PVC (polyvinyl chloride) |
| Outer Cable Diameter | 12.2 mm ± 0,4 mm (0,4803″ ± 0,0157″) |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Jacket Color | orange |
| A1 | 79.00 mm |
| A2 | 28.00 mm |
| B1 | 70.00 mm |
| B2 | 20.00 mm |
