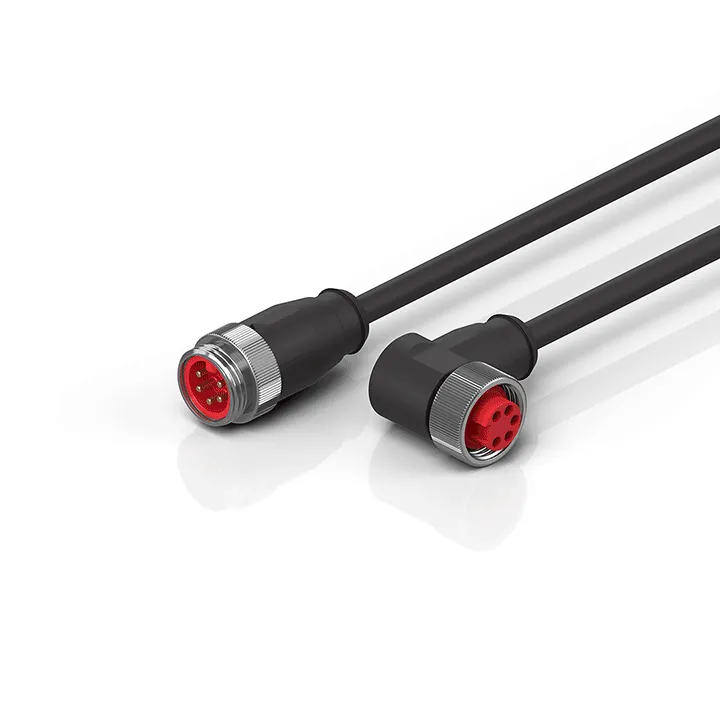

Beckhoff ZK2030-1114-0xxx
7/8“, plug, straight, male, 5-pin – 7/8“, socket, angled, female
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
7/8“, plug, straight, male, 5-pin – 7/8“, socket, angled, female
Specification
| Shielding | no |
|---|---|
| Installation Size | 7/8″-16 UN |
| Connector Type | flange front assembly with wires |
| Contact Type | female |
| Number Of Positions (Face) | 5-pin |
| Coding | A‑coded |
| Rated Current | 12 A at 40°C (according to IEC 60512-3), 10 A (according to UL2238) |
| Rated Voltage | 300 V (according to IEC 60664-1) |
| Mating Cycles | ≥ 100 (according to IEC 60512-9a) |
| Cross Section | 5 x 1.5 mm² (approx. AWG16) |
| Use | drag-chain suitable |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 7.8 mm ± 0.2 mm (0.3071″ ± 0.0079″) |
| Min. Bending Radius, Moved | 6 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 5 x outer cable diameter |
| Max. Number Of Cycles | 10 million at max. 20 m travel distance, 2 million at max. 100 m travel distance |
| Jacket Color | black |
| A1 | 55.00 mm |
| A2 | 26.00 mm |
| B1 | 24.80 mm |
| B2 | 23.80 mm |
