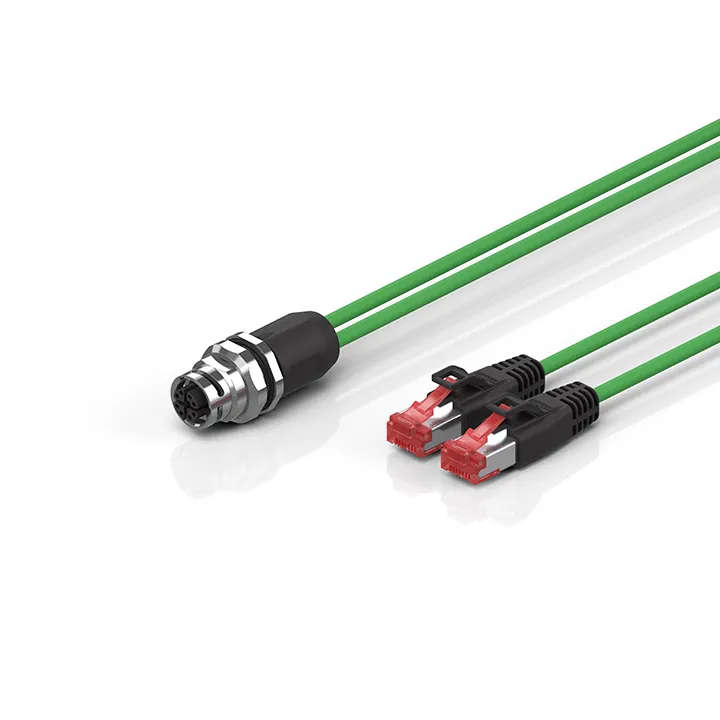

Beckhoff ZK1B90-6591-2xxx
M12, bayonet, flange, straight, socket, 8-pin, X-coded – DUO: 2 x RJ45, plug, straight, male
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M12, bayonet, flange, straight, socket, 8-pin, X-coded – DUO: 2 x RJ45, plug, straight, male
Specification
| Installation Size | RJ45 |
|---|---|
| Connector Type | plug |
| Contact Type | male |
| Number Of Positions (Face) | 8-pin |
| Coding | X-coded |
| Rated Current | 1 A at 40°C |
| Rated Voltage | 125 V |
| Recommended Torque, Nut | 1…1.2 Nm |
| Mating Cycles | ≥ 750 |
| Shielding | yes |
| Cross Section (Ethernet) | 1 x 4 x 0.14 mm² (AWG26) |
| Use | fixed installation |
| Material Jacket | PUR (polyurethane) |
| Outer Cable Diameter | 3.65 mm ± 0.15 mm (0.1496″ ± 0.0059″) |
| Min. Bending Radius, Moved | 15 x outer cable diameter |
| Min. Bending Radius, Fixed Installation | 8 x outer cable diameter, 2.5 x outher cable diameter (fixed with single bend) |
| Jacket Color | green |
| A1 | 45 mm |
| A2 | M12 inner diameter, M16 outer diameter |
| A3 | 20.5 mm |
| B1 | 44.0 mm |
| D1 | 44.0 mm |
