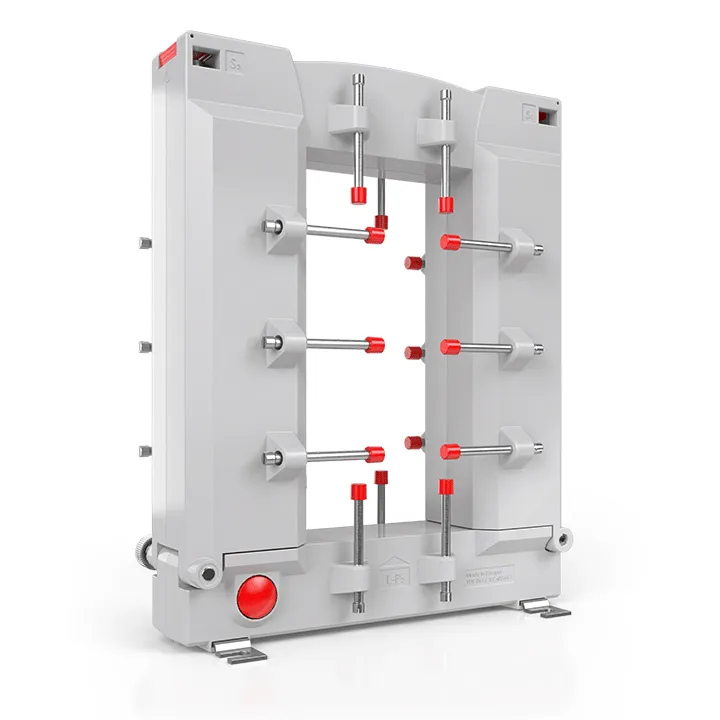

Beckhoff SCT7425-2000
The SCT7xxx busbar split-core CTs for high primary currents, ensure minimum installation effort in existing systems. With their separable measuring system, they enable flexible retrofitting without se…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The SCT7xxx busbar split-core CTs for high primary currents, ensure minimum installation effort in existing systems. With their separable measuring system, they enable flexible retrofitting without separating the primary
Specification
| Accuracy Class | 0.5 |
|---|---|
| Primary Current | 2000 A AC |
| Secondary Signal | 5 A |
| Rated Power | 15 VA |
| Max. Diameter Round Conductor | 80 mm |
| Possible Rail Dimensions | 80 x 160 mm |
| Size | 4 |
| Dimensions (W X H X D) | 195 mm x 243 mm x 79 mm |
| Approvals/Markings | CE, EAC |
