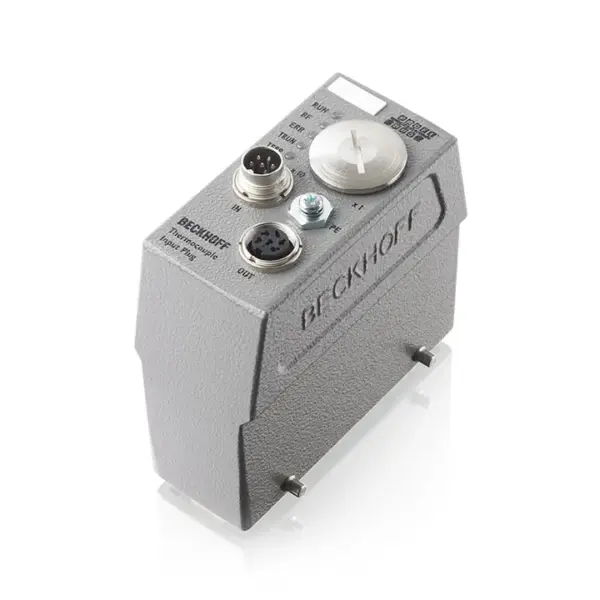

Beckhoff FM33xx-B310
The FM33xx-B310 Fieldbus Modules allow 12 or 32 thermocouples to be connected to a module. The connecting circuitry for these multiple thermocouples is housed in a compact, splash-proof housing and ha…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The FM33xx-B310 Fieldbus Modules allow 12 or 32 thermocouples to be connected to a module. The connecting circuitry for these multiple thermocouples is housed in a compact, splash-proof housing and has a PROFIBUS DP interface with a transmission rate of
Specification
| Fieldbus | PROFIBUS DP |
|---|---|
| Data Transfer Rates | max. 12 Mbaud |
| Configuration | via KS2000 or the controller |
| Connection | fieldbus: DIN 45322, 6-pin, screw type, thermocouples: industrial plug-in connection (Han24E), 2-wire connection |
| Number Of Channels | 12 thermocouple channels |
| Cable Length | max. 10 m |
| Sensor Types | type J, K, mV measurement |
| Measuring Range | type J: -10…+900°C; type K: -100…+1370°C |
| Resolution | 0.1°C per digit |
| Conversion Time | approx. 250 ms |
| Measurement Error/Uncertainty | ±0.5% (of the full scale value) |
| Input Filter | 5 variations, configurable |
| Power Supply | 24 V DC (-15%/+20%) |
| Current Consumption | typ. 90 mA/max. 120 mA |
| Bit Width In The Process Image | input: 4 x 16 bit data, optional: 4 x 8 bit control/status |
| Electrical Isolation | channels/control voltage: 500 V, between the channels: no, control voltage/fieldbus: 100 V (PROFIBUS) |
| Contact Material | hard gold plated |
| Dimensions (W X H X D) | type A: 120 mm x 52 mm x 129 mm, type B: 150 mm x 52 mm x 129 mm |
| Weight | type A: 950 g, type B: 1030 g |
| Operating Temperature | 0…55°C |
| Storage Temperature | -25…+85°C |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | housing to IP65 (PROFIBUS connector: IP67)/variable |
| Approvals/Markings | CE, UL |
