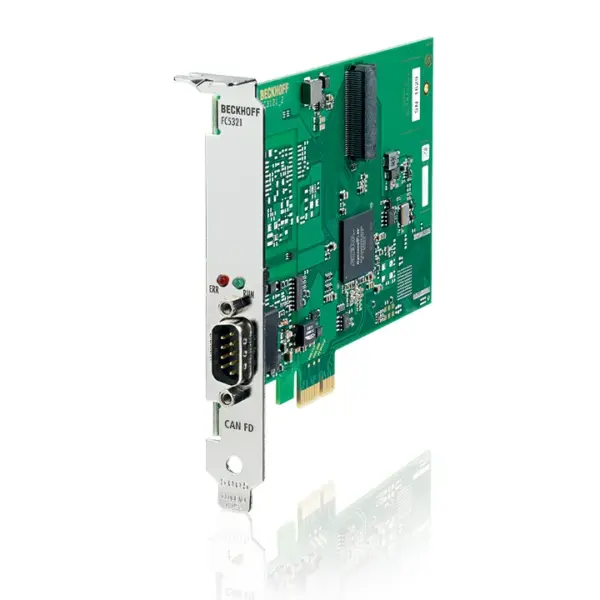

Beckhoff FC5321
The FC532x PC plug-in cards connect the PC (PCI Express®) to a CAN FD network. CAN FD is a further development of the very common CAN hardware. The advantage of CAN FD is that up to 64 bytes of data c…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The FC532x PC plug-in cards connect the PC (PCI Express®) to a CAN FD network. CAN FD is a further development of the very common CAN hardware. The advantage of CAN FD is that up to 64 bytes of data can be sent and received in one CAN frame by operating
Specification
| Fieldbus | CANopen master/slave interface (classic CAN), CAN FD |
|---|---|
| Pc Interface | PCI Express® x1 |
| Number Of Channels | 1 |
| Data Transfer Rates | max. 5…8 Mbit/s in data phase, max. 1 Mbit/s in arbitration phase |
| Bus Interface | 1 x D-sub plug, 9-pin |
| Termination Resistor | switchable |
| Bit Width In The Process Image | total max.: 4 kbyte input and output data |
| Hardware Diagnostics | 2 LEDs per channel |
| Driver | TwinCAT 3.1 |
| Dimensions (W X H X D) | single slot, approx. 100 mm x 130 mm |
| Operating Temperature | 0…55°C |
