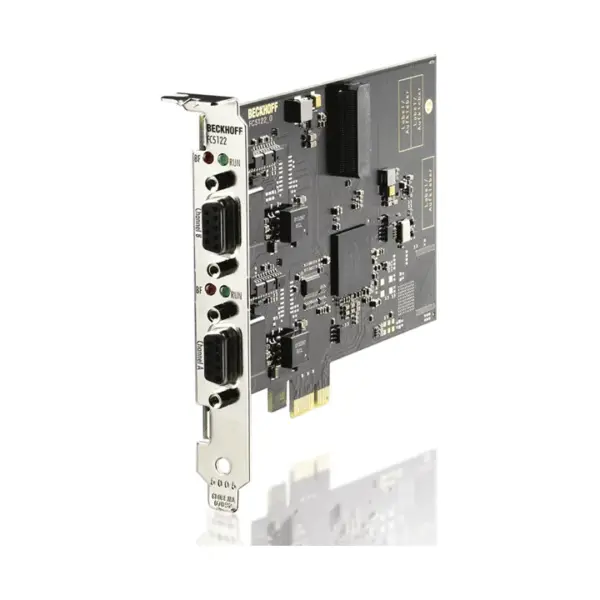

Beckhoff FC5122
The FC512x PC plug-in cards link the PC (PCI Express®) to a CANopen network. They optionally act as network master or slave. In addition, general CAN messages can be sent or received – without having…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The FC512x PC plug-in cards link the PC (PCI Express®) to a CANopen network. They optionally act as network master or slave. In addition, general CAN messages can be sent or received – without having to bother with CAN frames in the application program.
Specification
| Fieldbus | CANopen |
|---|---|
| Pc Interface | PCI Express® x1 |
| Number Of Channels | 2 |
| Data Transfer Rates | 10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud |
| Bus Interface | 2 x D-sub socket, 9-pin, galvanically decoupled |
| Termination Resistor | switchable |
| Bit Width In The Process Image | total max.: 4 kbyte input and output data |
| Hardware Diagnostics | 2 LEDs per channel |
| Driver | TwinCAT 2.11 R3 and higher |
| Dimensions (W X H X D) | single slot, approx. 100 mm x 130 mm |
| Operating Temperature | 0…55°C |
