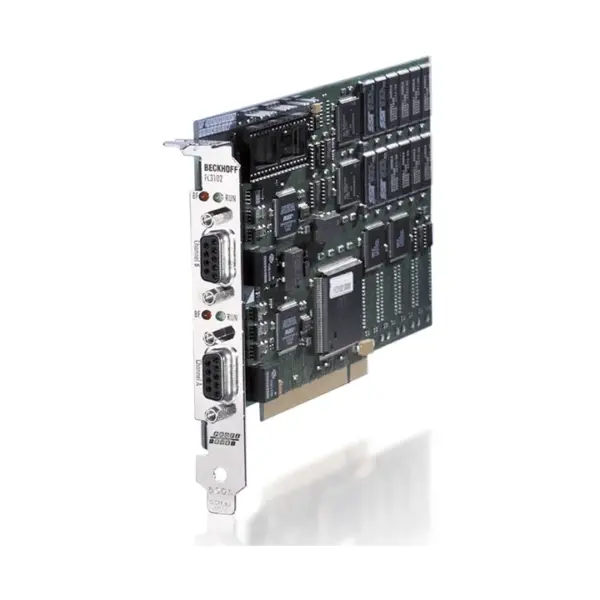

Beckhoff FC3102
PROFIBUS DP, DP-V1 and DP-V2 (MC): the PROFIBUS PCI™ Fieldbus Cards from Beckhoff can master the PROFIBUS protocol with all its features. Thanks to the PROFIBUS chip developed in-house, the cards are…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PROFIBUS DP, DP-V1 and DP-V2 (MC): the PROFIBUS PCI™ Fieldbus Cards from Beckhoff can master the PROFIBUS protocol with all its features. Thanks to the PROFIBUS chip developed in-house, the cards are equipped with the latest version of the PROFIBUS
Specification
| Fieldbus | PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant) |
|---|---|
| Pc Interface | PCI™ |
| Number Of Channels | 2 |
| Data Transfer Rates | 9.6 kbaud…12 Mbaud |
| Bus Interface | 2 x D-sub socket, 9-pin, galvanically decoupled |
| Cycle Time | differing DP cycle times per slave are possible using the CDL concept |
| Bit Width In The Process Image | total max.: 2 x 3 kbyte input and output data |
| N O V R A M | – |
| Hardware Diagnostics | 2 LEDs per channel |
| Dimensions (W X H X D) | single slot, approx. 106 mm x 175 mm |
| Operating Temperature | 0…55°C |
