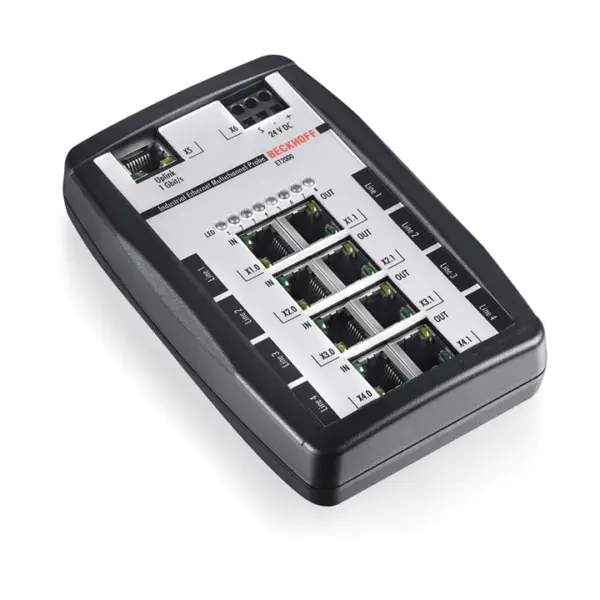

Beckhoff ET2000
The ET2000 multi-channel probe from Beckhoff is a versatile piece of hardware for analyzing any Industrial Ethernet solution. With eight ports this device enables unlimited synchronized recording of u…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The ET2000 multi-channel probe from Beckhoff is a versatile piece of hardware for analyzing any Industrial Ethernet solution. With eight ports this device enables unlimited synchronized recording of up to four independent channels at a speed of
Specification
| Number Of Channels | 4 |
|---|---|
| Number Of Ports | 8 |
| Uplink Port | 1 x Uplink 1 Gbit/s |
| Delay | approx. 1 µs |
| Resolution Timestamp | 1 ns (channel 0/1) |
| Software | WinPcap |
| Data Transfer Rates | probe ports: 100 Mbit/s, uplink port: 1 Gbit/s |
| Hardware Diagnostics | link/activity LED per channel, 1 power LED |
| Power Supply | 24 (18…30) V DC, 500 mA, 3-pin connection (+, -, PE) |
| Dimensions (W X H X D) | approx. 100 mm x 150 mm x 40 mm |
| Operating Temperature | 0…55°C |
