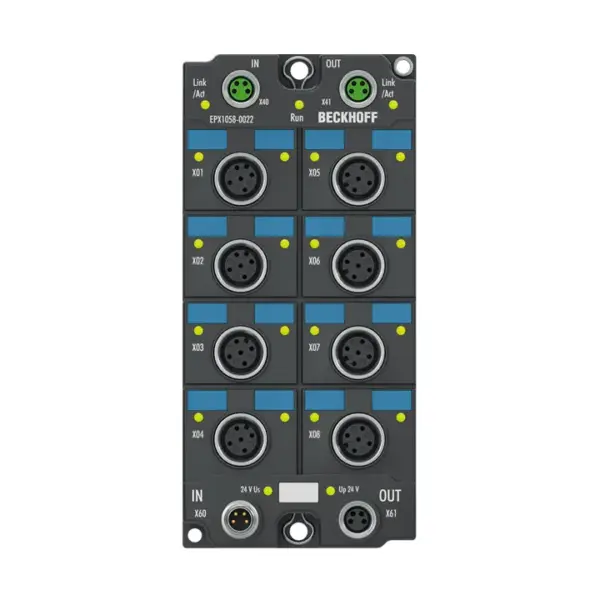

Beckhoff EPX1058-0022
The EPX1058-0022 EtherCAT Box acquires signals from NAMUR field devices according to IEC 60947-5-6. The sensors are supplied with a voltage of 8.2 V and return a diagnosable current signal. In this wa…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EPX1058-0022 EtherCAT Box acquires signals from NAMUR field devices according to IEC 60947-5-6. The sensors are supplied with a voltage of 8.2 V and return a diagnosable current signal. In this way, a wire breakage or short circuit can be detected in
Specification
| Protocol | EtherCAT |
|---|---|
| Bus Interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Specification | NAMUR (IEC 60947-5-6) |
| Number Of Inputs | 8 |
| Input Connections | M12 x 1, 5-pin, a-coded |
| Connection Method | 2-wire |
| Open Circuit Voltage | typ. 8.2 V DC |
| “0” Signal Current | ≤ 1.2 mA |
| “1” Signal Current | ≥ 2.1 mA |
| Switching Hysteresis | typ. 300 µA |
| Short Circuit Current | typ. 7 mA |
| Fault Detection | I ≤ 200 µA (cable break), I ≥ 6.3 mA (short circuit) |
| Max. Switching Frequency | 1 kHz |
| Power Supply Connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Sensor Supply | from load supply voltage UP |
| Current Consumption From Us | 50 mA |
| Special Features | can be parameterized by channel: NAMUR NO/NC, potential-free contacts NO/NC |
| Weight | approx. 250 g |
| Operating Temperature | -25…+70°C |
| Storage Temperature | -40…+85°C |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/Markings | CE, UL, ATEX, IECEx |
| Ex Marking | ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II 3(1)D Ex tc [ia Da] IIIC T135 °C Dc I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc Ex tc [ia Da] IIIC T135 °C Dc [Ex ia Ma] I |
| Dimensions (W X H X D) | 60 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
