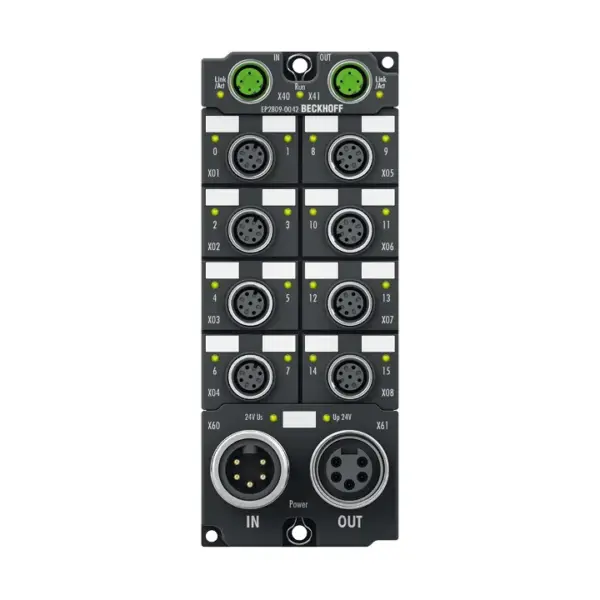

Beckhoff EP2809-0042
The EP2809-0042 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs pro…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EP2809-0042 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 0.5 A. A
Specification
| Protocol | EtherCAT |
|---|---|
| Bus Interface | 2 x M12 socket, 4-pin, D-coded |
| Number Of Outputs | 16 |
| Output Connections | M12 x 1, 5-pin, a-coded |
| Ohmic Switching Current | – |
| Minimum Permitted Load | – |
| Load Type | ohmic, inductive, lamp load |
| Nominal Output Voltage | 24 V DC (-15%/+20%) |
| Max. Output Current | 0.5 A per channel, individually short-circuit proof, ∑ 16 A |
| Switching Times | typ. TON: 60 µs, typ. TOFF: 300 µs |
| Short Circuit Current | typ. 1.9 A |
| Distributed Clocks | – |
| Current Consumption From Us | typ. 130 mA |
| Auxiliary Power Current | typ. 20 mA + load |
| Power Supply Connection | feed: 1 x 7/8″ plug, 5-pin; downstream connection: 1 x 7/8″ socket, 5-pin |
| Operating Cycles Mech. (Min.) | – |
| Operating Cycles Electr. (Min.) | – |
| Electrical Isolation | 500 V |
| Weight | approx. 440 g |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/Markings | CE, UL (in preparation) |
| Dimensions (W X H X D) | 60 mm x 150 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
