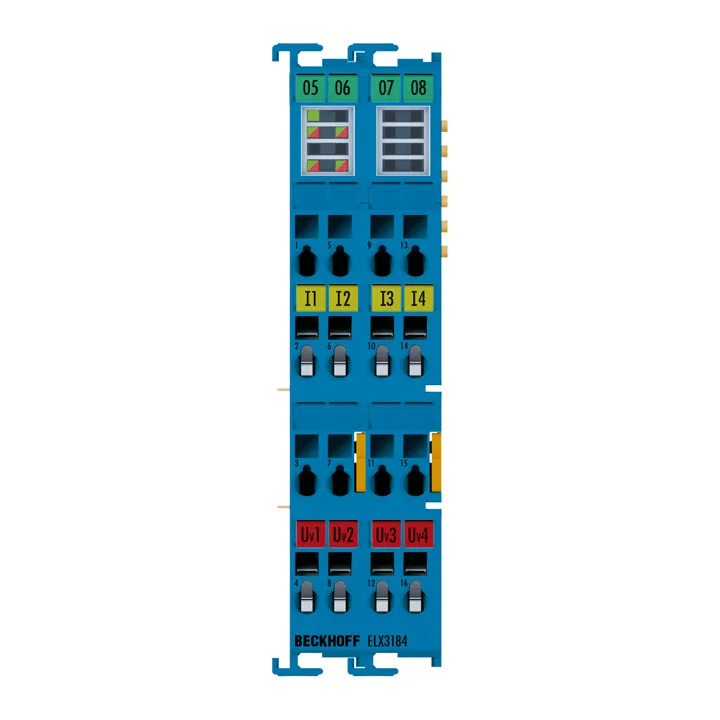

Beckhoff ELX3184
The ELX318x analog input terminal allows the direct connection of intrinsically safe HART-capable field devices located in hazardous areas classified zone 0/20 or 1/21. It supplies measuring transduce…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The ELX318x analog input terminal allows the direct connection of intrinsically safe HART-capable field devices located in hazardous areas classified zone 0/20 or 1/21. It supplies measuring transducers located in the field and transmits their analog
Specification
| Technology | current input |
|---|---|
| Signal Current | 4…20 mA |
| Number Of Inputs | 4 (single-ended) |
| Connection Method | 2-wire |
| Resolution | 16 bit (incl. sign) |
| Measurement Error/Uncertainty | ±0.3% (relative to full scale value) |
| Internal Resistance | typ. 250 Ω |
| Supply Voltage Electronics | 24 V DC (via power contacts), ELX9560 power supply |
| Current Consumption Power Contacts | typ. 20 mA + load |
| Current Consumption E Bus | typ. 60 mA |
| Distributed Clocks | yes |
| Special Features | standard and compact process image, activatable FIR/IIR filters, limit value monitoring, NE43 NAMUR |
| Weight | approx. 90 g |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP20/see documentation |
| Approvals/Markings | CE, UL, ATEX, IECEx, cFMus |
| Ex Marking | ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I |
| Design Form | compact terminal housing with signal LEDs |
| Material | polycarbonate, blue |
| Dimensions (W X H X D) | 24 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection Cross Section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection Cross Section Awg | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping Length | 8…9 mm |
| Power Contacts | 2 blade/spring contacts |
