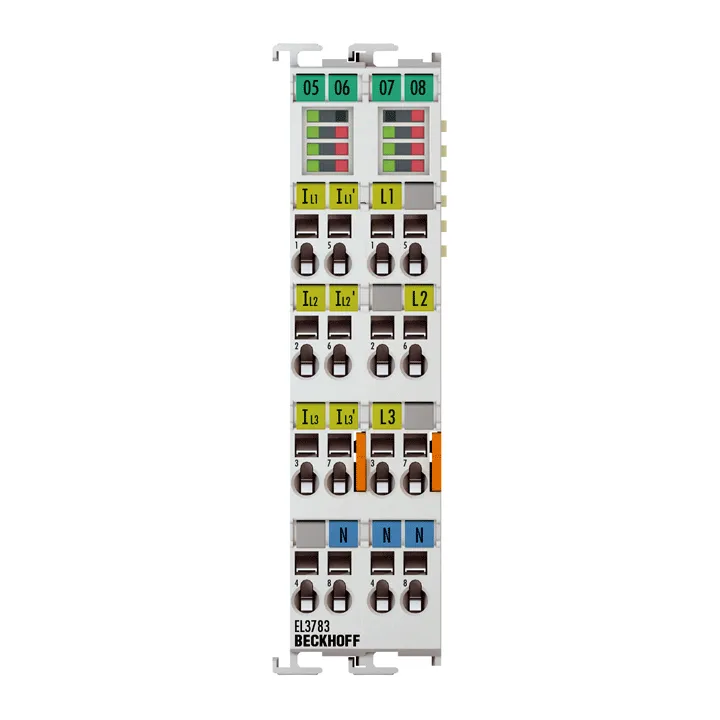

Beckhoff EL3783
The EL3783 EtherCAT Terminal is a power monitoring I/O terminal used for state monitoring of a 3-phase AC voltage system. For each phase, voltage up to 400/690 Vrms and current up to 1 Arms/5 Arms are…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EL3783 EtherCAT Terminal is a power monitoring I/O terminal used for state monitoring of a 3-phase AC voltage system. For each phase, voltage up to 400/690 Vrms and current up to 1 Arms/5 Arms are sampled as instantaneous values with a resolution of
Specification
| Number Of Inputs | 3 x current, 3 x voltage |
|---|---|
| Oversampling Factor | n = 1…100 selectable |
| Distributed Clocks | yes |
| Conversion Time | 50 µs, all channels simultaneously |
| Measured Values | current (I1, I2, I3), voltage as instantaneous values (oversampling) |
| Measuring Voltage | max. 690 V AC 3~ (ULX-N: max. 400 V AC) |
| Measuring Current | max. 1 A (AC)/5 A (AC), via measuring transformers x A AC/1 A AC or 5 A AC |
| Measuring Range, Technical | generally 130% of the nominal measuring range, see documentation |
| Resolution | 16 bit (incl. sign) |
| Measurement Error/Uncertainty | 0.2% relative to full scale value |
| Electrical Isolation | 4500 V |
| Current Consumption E Bus | typ. 260 mA |
| Current Consumption Power Contacts | – |
| Special Features | oversampling, AC measurement, optional single-phase operation, adjustable automatic switch of current measuring range, electrically isolated current inputs |
| Weight | approx. 100 g |
| Operating Temperature | -25…+55°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP20/see documentation |
| Approvals/Markings | CE, UL |
| Design Form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection Cross Section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection Cross Section Awg | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping Length | 8…9 mm |
| Current Load Power Contacts | Imax: 10 A |
| Dimensions (W X H X D) | 24 mm x 100 mm x 68 mm |
