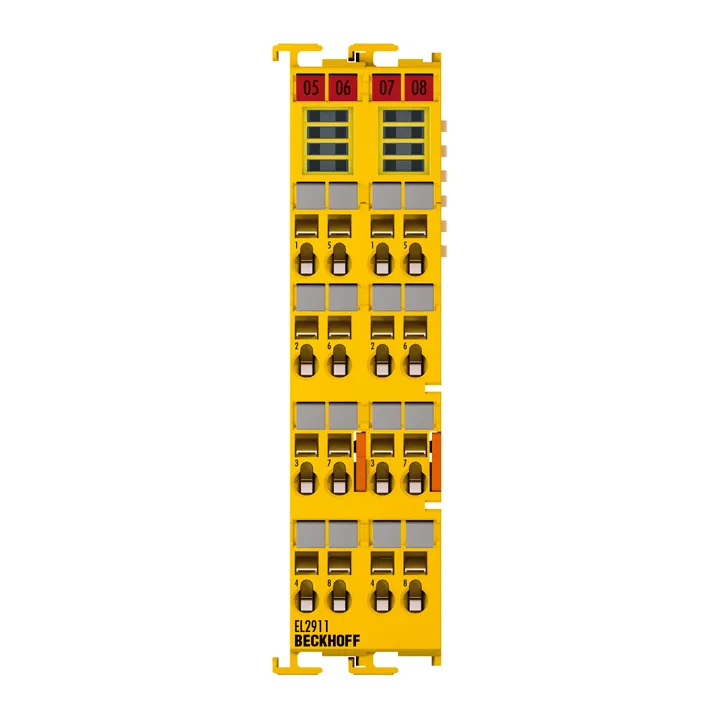

Beckhoff EL2911
The EL2911 TwinSAFE component is a potential supply terminal and enables the setup of TwinSAFE groups with a safe power supply (24 V DC, up to 10 A). If the TwinSAFE terminal detects an error, it swit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EL2911 TwinSAFE component is a potential supply terminal and enables the setup of TwinSAFE groups with a safe power supply (24 V DC, up to 10 A). If the TwinSAFE terminal detects an error, it switches to the safe state (fail-safe). Safe potential
Specification
| Connection Technology | 1-/2-wire and/or via power contacts |
|---|---|
| Specification | link unit between safe input and output signals |
| Number Of Outputs | 1 |
| Max. Output Current | 10 A |
| Protocol | TwinSAFE/Safety over EtherCAT |
| Fault Response Time | ≤ watchdog time (parameterizable) |
| Current Consumption Power Contacts | load-dependent |
| Current Consumption E Bus | typ. 180 mA |
| Installation Position | horizontal |
| Safety Standard | EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
| Weight | approx. 98 g |
| Protection Rating | IP20 |
| Design Form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection Cross Section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection Cross Section Awg | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping Length | 8…9 mm |
| Current Load Power Contacts | Imax: 10 A |
| Dimensions (W X H X D) | 24 mm x 100 mm x 68 mm |
