Beckhoff EK9520

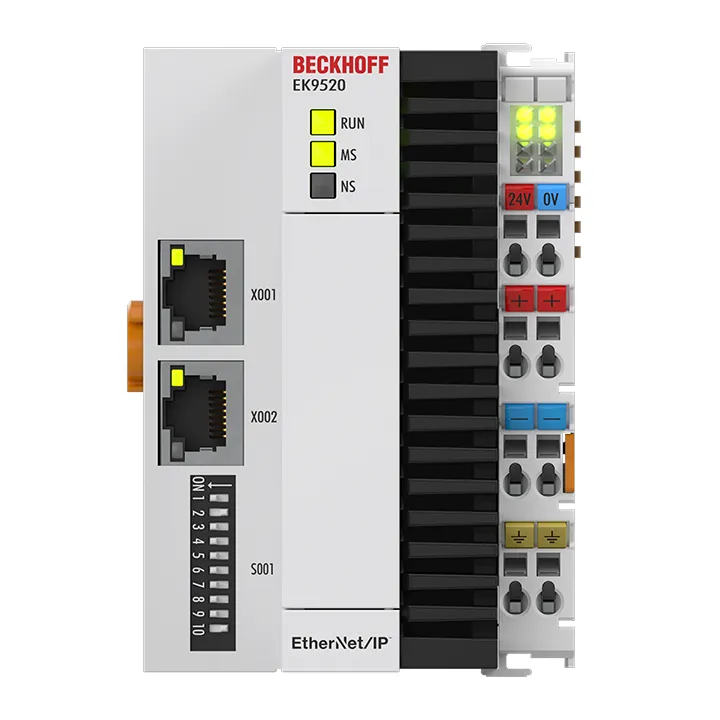

The EK9520 Bus Coupler is the successor of the EK9500. It connects EtherNet/IP™ networks to the EtherCAT Terminals (ELxxxx) as well as EtherCAT Box modules (EPxxxx) and converts the telegrams from Eth…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EK9520 Bus Coupler is the successor of the EK9500. It connects EtherNet/IP™ networks to the EtherCAT Terminals (ELxxxx) as well as EtherCAT Box modules (EPxxxx) and converts the telegrams from EtherNet/IP™ to the E-bus signal representation. One
Specification
| Task Within Ethercat System | coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to EtherNet/IP™ networks |
|---|---|
| Number Of Ethercat Terminals | depending on the process data size |
| Type/Number Of Peripheral Signals | depending on the process data size |
| Protocol | EtherNet/IP™ |
| Data Transfer Rates | 100/1000 Mbit/s |
| Configuration | not required |
| Bus Interface | 2 x RJ45 (switched) |
| Power Supply | 24 V DC (-15%/+20%) |
| Input Current | typ. 120 mA + (total E-bus current)/4 |
| Current Consumption E Bus | up to 2 A |
| Power Contacts | max. 24 V DC/max. 10 A |
| Electrical Isolation | 500 V (power contact/supply voltage/Ethernet) |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. Rating/Installation Pos. | IP20/see documentation |
| Approvals/Markings | CE |
| Design Form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection Cross Section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection Cross Section Awg | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping Length | 8…9 mm |
| Current Load Power Contacts | Imax: 10 A |
| Dimensions (W X H X D) | 64 mm x 100 mm x 72 mm |
