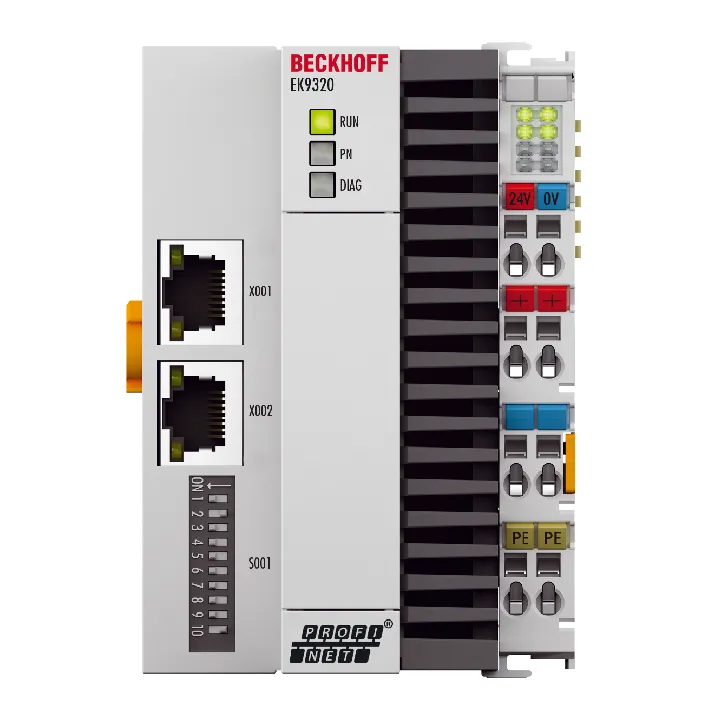

Beckhoff EK9320
The EK9320 Bus Coupler is the successor of the EK9300. It connects PROFINET RT networks to the EtherCAT Terminals (ELxxxx) as well as the EtherCAT Box modules (EPxxxx) and converts the telegrams from…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EK9320 Bus Coupler is the successor of the EK9300. It connects PROFINET RT networks to the EtherCAT Terminals (ELxxxx) as well as the EtherCAT Box modules (EPxxxx) and converts the telegrams from PROFINET RT to the E-bus signal representation. One
Specification
| Task Within Ethercat System | coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to PROFINET RT networks |
|---|---|
| Number Of Ethercat Terminals | depending on the process data size |
| Type/Number Of Peripheral Signals | depending on the process data size |
| Protocol | PROFINET RT |
| Data Transfer Rates | 100/1000 Mbit/s |
| Configuration | not required |
| Bus Interface | 2 x RJ45 (switched) |
| Power Supply | 24 V DC (-15%/+20%) |
| Input Current | typ. 120 mA + (total E-bus current)/4 |
| Current Consumption E Bus | up to 2 A |
| Power Contacts | max. 24 V DC/max. 10 A |
| Electrical Isolation | 500 V (power contact/supply voltage/Ethernet) |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. Rating/Installation Pos. | IP20/see documentation |
| Approvals/Markings | CE, UL |
| Design Form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection Cross Section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection Cross Section Awg | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping Length | 8…9 mm |
| Current Load Power Contacts | Imax: 10 A |
| Dimensions (W X H X D) | 64 mm x 100 mm x 72 mm |
