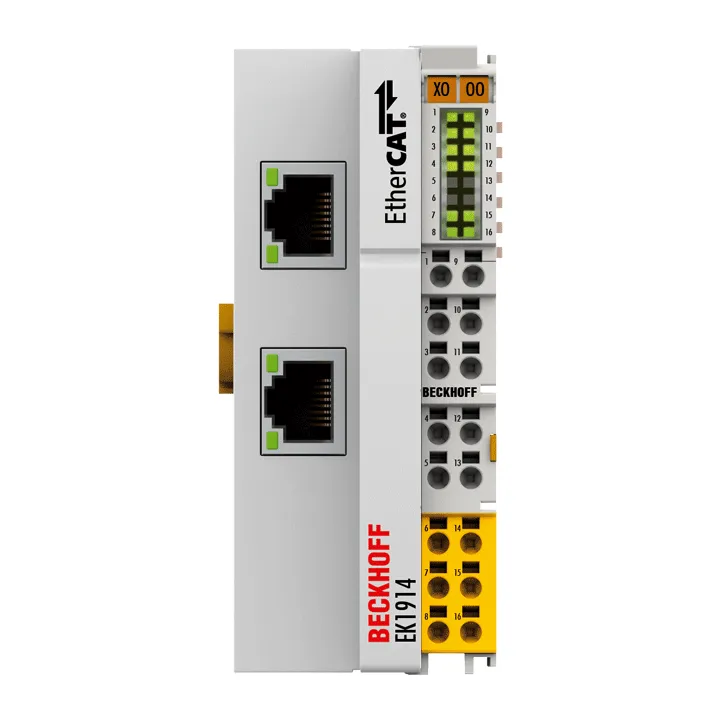

Beckhoff EK1914
The EK1914 EtherCAT coupler combines the functionalities of the EK1100 EtherCAT coupler with standard and safe digital I/Os. This results in a compact design that is especially suitable for applicatio…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The EK1914 EtherCAT coupler combines the functionalities of the EK1100 EtherCAT coupler with standard and safe digital I/Os. This results in a compact design that is especially suitable for applications with a low number of I/Os. Like the EK1100, the
Specification
| Connection Technology | 1-/2-wire |
|---|---|
| Specification | EtherCAT Coupler with standard and safety I/Os |
| Number Of Inputs | 6 digital inputs, 2 of which are fail-safe inputs |
| Number Of Outputs | 6 digital outputs, 2 of which are fail-safe outputs |
| Max. Output Current | per standard output: 0.5 A, per safe output: 0.5 A, min. 20 mA |
| Protocol | EtherCAT |
| Fault Response Time | ≤ watchdog time |
| Installation Position | horizontal |
| Safety Standard | DIN EN ISO 13849-1:2008 (Cat. 4, PL e) |
| Weight | approx. 123 g |
| Protection Rating | IP20 |
| Design Form | HD (High Density) housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection Cross Section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
| Connection Cross Section Awg | s*: AWG28…16, st*: AWG22…16, f*: AWG26…19 |
| Stripping Length | 8…9 mm |
| Current Load Power Contacts | Imax: 10 A |
| Dimensions (W X H X D) | 44 mm x 100 mm x 67 mm |
