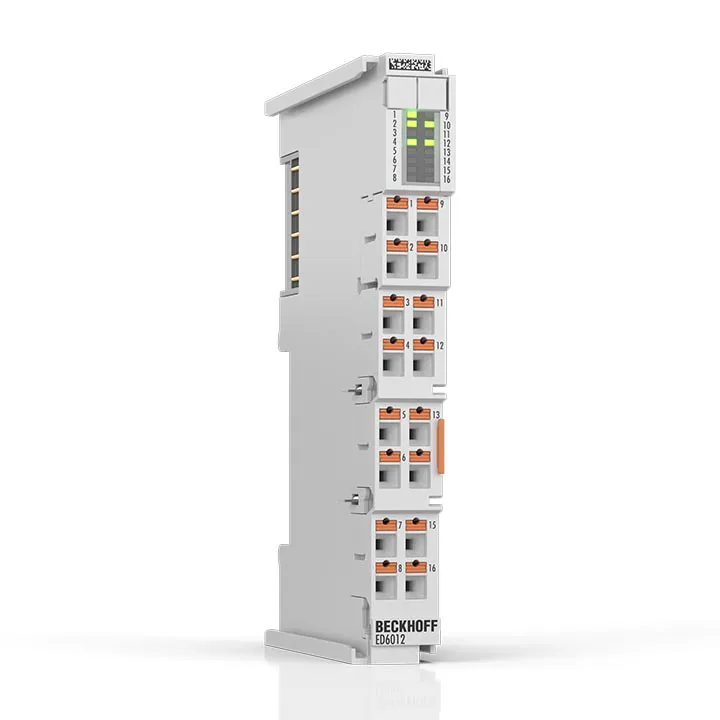

Beckhoff ED6012
The ED6012 EtherCAT Terminal enables the connection of serially communicating devices to the automation system. Extensive parameterization options allow flexible adaptation to different communication…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The ED6012 EtherCAT Terminal enables the connection of serially communicating devices to the automation system. Extensive parameterization options allow flexible adaptation to different communication requirements. The following parameters, among others
Specification
| Number Of Channels | Total | 2 |
|---|---|
| Internal Communication Protocol | EtherCAT |
| Number Of Channels | 2 |
| Interfaces | RS232, RS422, RS485 |
| Protocol | variable |
| Transmission Type | half or full duplex |
| Data Transfer Medium | copper |
| Device Type | master, slave |
| Process Data Scope | 256 byte |
| Transmission Rate | 300…921,600 baud |
| Data Buffer | Receiving | 4 kbyte |
| Data Buffer | Sending | 4 kbyte |
| Number Of Devices | max. 32 |
| Device | Supply Voltage | 5 V DC |
| Device | Supply Current | 0.1 A |
| Termination Resistor | termination: 120 Ω, switchable, bias/fail-safe: 1 kΩ, switchable |
| Cable Length | Point To Point | max. 1200 m |
| Id Switch | no |
| Connection Technology | push-in |
| Distributed Clocks | yes |
| Distributed Clocks | Precision | 1 µs |
| Distributed Clocks | Scope | 64 bit |
| Timestamp | yes |
| Timestamp | Precision | typ. 10 µs |
| Timestamp | Resolution | 1 ns |
| Oversampling | no |
| Electronics | Supply Voltage | via E-bus |
| E Bus | Current Consumption | typ. 190 mA |
| Power Contacts | Input Voltage | max. 24 V DC (+20%) |
| Power Contacts | Current Carrying Capacity | max. 10 A DC |
| Power Contacts | Current Consumption | – |
| Power Contacts | Output Voltage | corresponds to Power contacts, Input voltage |
| Electrical Isolation | Channel/Channel | functional, 707 V DC type test |
| Electrical Isolation | Channel/Bus | functional, 707 V DC type test |
| Operating Temperature | 0…55°C |
| Storage Temperature | -25…+85°C |
| Relative Humidity | 95%, no condensation |
| Installation Position | variable |
| Vibration Resistance | conforms to EN 60068-2-6 |
| Shock Resistance | conforms to EN 60068-2-27 |
| Emc Immunity | conforms to EN 61000-6-2 |
| Emc Emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | UL (in preparation) |
| Weight | 60 g |
| Protection Rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (Single) | 15 mm |
| Dimensions | Width (Lined Up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/Back Wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/Terminal | double slot and key connection |
| Plug In Wiring Level | no |
| Connection Cross Section | Solid Wire | 0.08…1.5 mm² |
| Connection Cross Section | Stranded Wire | 0.25…1.5 mm² |
| Connection Cross Section | With Ferrule | 0.14…0.75 mm² |
| Connection Cross Section Awg | Solid Wire | AWG28…16 |
| Connection Cross Section Awg | Stranded Wire | AWG22…16 |
| Connection Cross Section Awg | With Ferrule | AWG26…19 |
| Stripping Length | 8…9 mm |
| Power Contact | " " (Left) | yes |
| Power Contact | "+" (Rechts) | yes |
| Power Contact | " " (Right) | yes |
| Power Contact | "⏚" (Left) | no |
| Power Contact | "⏚" (Right) | no |
| Insertion Lock For Power Contact “⏚” | yes |
