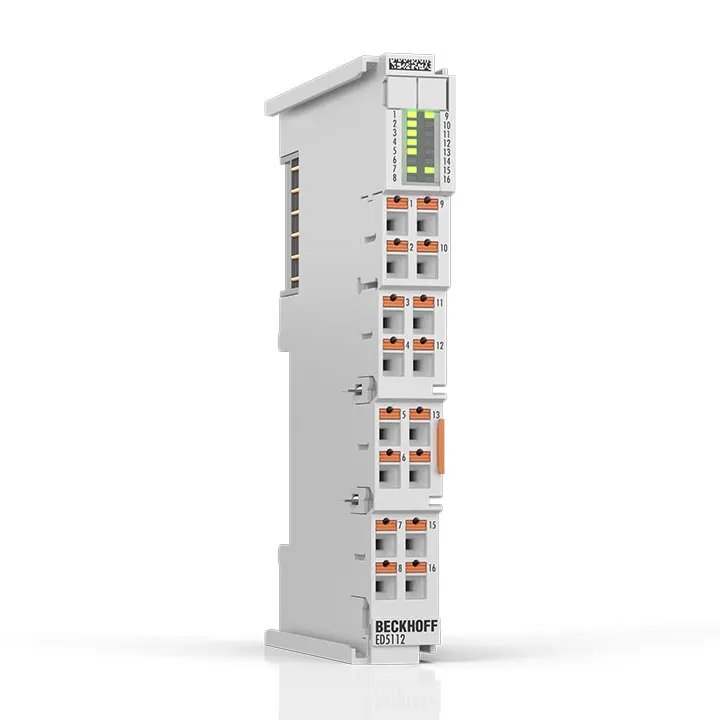

Beckhoff ED5112
The ED5112 EtherCAT Terminal is an interface for the direct connection of two incremental encoders with A and B tracks or one encoder with A, B, and C tracks. Encoders with differential signals (RS422…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The ED5112 EtherCAT Terminal is an interface for the direct connection of two incremental encoders with A and B tracks or one encoder with A, B, and C tracks. Encoders with differential signals (RS422) or single-ended signals (TTL and open collector) can
Specification
| Number Of Channels | Total | 1 |
|---|---|
| Internal Communication Protocol | EtherCAT |
| Number Of Channels | 1 |
| Function | alarm input, status input |
| Sensor Types | incremental position detection |
| Signal Range | RS422, TTL, open collector, counter, pulse generator |
| Resolution | Process Data (Counter) | 32 bit (adjustable) |
| Microincrements | yes |
| Resolution | Microincrements | 8 bit |
| Sensor Supply | Output Voltage | 5 V DC, 12 V DC, 24 V DC (adjustable) |
| Sensor Supply | Output Current | max. 0.3 A |
| Quadrature Decoder | ja |
| Encoder Connection | single-ended connection: A, B, C |
| Input Frequency | 400 kilo increments/s with 4-fold evaluation, corresponds to 100 kHz |
| Open Circuit Recognition | no |
| Connection Technology | push-in |
| Signal Range | Nominal | 5 V DC |
| Signal Range | Technical | 20.4…28.8 V DC |
| Specification | positive switching |
| “0” Signal Voltage | 2…6 V DC |
| “1” Signal Voltage | -6…+0.8 V DC |
| Input Filter | typ. > 1 µs |
| Input Current | typ. 5 mA |
| Cable Length | Sensor Cable | max. 30 m |
| Distributed Clocks | yes |
| Distributed Clocks | Precision | 1 µs |
| Distributed Clocks | Scope | 64 bit |
| Timestamp | yes |
| Timestamp | Precision | typ. 10 µs |
| Timestamp | Resolution | 1 ns |
| Oversampling | no |
| Electronics | Supply Voltage | via E-bus, via power contacts |
| E Bus | Current Consumption | typ. 190 mA |
| Power Contacts | Input Voltage | 24 V DC (-15%/+20%) |
| Power Contacts | Current Carrying Capacity | max. 10 A DC |
| Power Contacts | Current Consumption | typ. 10 mA + load |
| Power Contacts | Output Voltage | corresponds to Power contacts, Input voltage |
| Electrical Isolation | Channel/Channel | no |
| Electrical Isolation | Channel/Bus | functional, 707 V DC type test |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Installation Position | variable |
| Vibration Resistance | conforms to EN 60068-2-6 |
| Shock Resistance | conforms to EN 60068-2-27 |
| Emc Immunity | conforms to EN 61000-6-2 |
| Emc Emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | UL (in preparation) |
| Weight | 60 g |
| Protection Rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (Single) | 15 mm |
| Dimensions | Width (Lined Up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/Back Wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/Terminal | double slot and key connection |
| Plug In Wiring Level | no |
| Connection Cross Section | Solid Wire | 0.08…1.5 mm² |
| Connection Cross Section | Stranded Wire | 0.25…1.5 mm² |
| Connection Cross Section | With Ferrule | 0.14…0.75 mm² |
| Connection Cross Section Awg | Solid Wire | AWG28…16 |
| Connection Cross Section Awg | Stranded Wire | AWG22…16 |
| Connection Cross Section Awg | With Ferrule | AWG26…19 |
| Stripping Length | 8…9 mm |
| Power Contact | " " (Left) | yes |
| Power Contact | "+" (Rechts) | yes |
| Power Contact | " " (Right) | yes |
| Power Contact | "⏚" (Left) | no |
| Power Contact | "⏚" (Right) | no |
| Insertion Lock For Power Contact “⏚” | yes |
