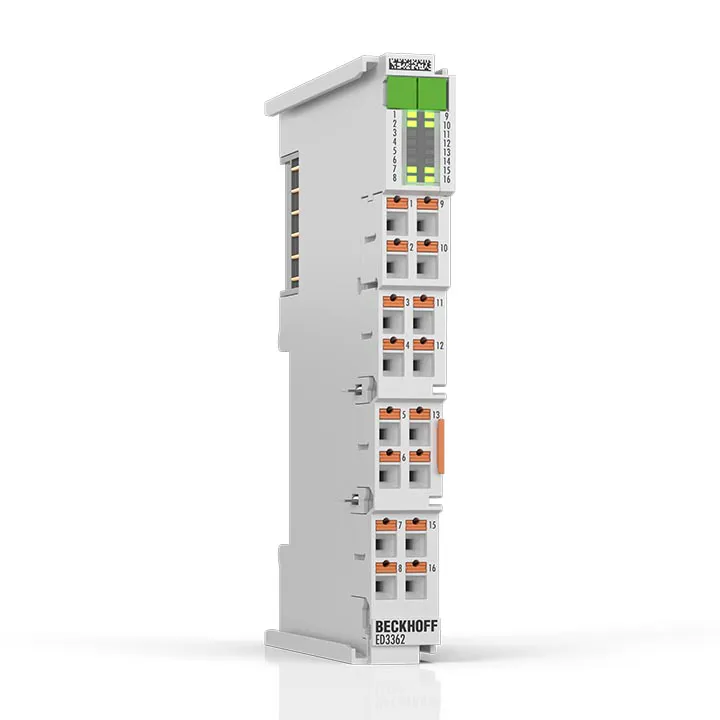

Beckhoff ED3362
The ED3362 analog input terminal enables the direct connection of two independent resistance bridges (strain gauges – SG) or load cells using the 4-wire or 6-wire connection technique. It records the…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The ED3362 analog input terminal enables the direct connection of two independent resistance bridges (strain gauges – SG) or load cells using the 4-wire or 6-wire connection technique. It records the ratio of the bridge voltages UBridge to the measured
Specification
| Number Of Channels | Total | 2 |
|---|---|
| Internal Communication Protocol | EtherCAT |
| Number Of Channels | max. 2 |
| Sensor Types | Strain gauge, load cells |
| Connection Technology | push-in |
| Resolution | Technical | 24 bit |
| Resolution | Process Data | 18.34… nV/V |
| Display | Process Data | REAL32, INT16, INT32 |
| Adc Conversion Method | delta-sigma |
| Conversion Type | simultaneous |
| Conversion Time | min. 100 µs |
| Conversion Rate | max. 10 ksps |
| Signal Range | Ubridge | ± 4 V DC |
| Signal Range | Ubridge, Final Value (Fsv) | 4 V DC |
| Signal Range | Usense | ± 13 V DC |
| Signal Range | Usense, Final Value (Fsv) | 13 V DC |
| Internal Resistance/Impedance | Ubridge | min. 5 MΩ |
| Internal Resistance/Impedance | Usense | min. 5 MΩ |
| Ground Reference | differential |
| Measuring Procedure | ratiometric |
| Input Filter Limit Frequency | 10 kHz |
| Dielectric Strength | max. 30 V |
| Accuracy/Uncertainty | Of The Fsv | ±0.05% |
| Sensor Supply | Output Voltage | 5 V DC/10 V DC |
| Sensor Supply | Output Current | max. 100 mA |
| Open Circuit Recognition | yes |
| Function | trigger output |
| Signal Range | Technical | max. 28.8 V DC |
| Specification | potential-free |
| “0” Signal Voltage | 0…1.5 V DC |
| “1” Signal Voltage | 2.5…30 V DC |
| Input Filter | 2.5 µs |
| Input Current | 3 mA |
| Load Type | ohmic |
| Signal Range | Nominal | max. 24 V DC |
| Output Current | max. 150 mA |
| Switching Times | Ton | typ. 1.4 ms |
| Switching Times | Toff | typ. 0.2 ms |
| Diagnostics | yes |
| Short Circuit Detection | > 6.5 mA |
| Breaking Energy | Inductive | 100 mJ |
| Microincrements | no |
| Distributed Clocks | no |
| Timestamp | no |
| Oversampling | no |
| Electronics | Supply Voltage | via E-bus |
| E Bus | Current Consumption | typ. 100 mA |
| Power Contacts | Input Voltage | 24 V DC (-15%/+20%) |
| Power Contacts | Current Carrying Capacity | max. 10 A DC |
| Power Contacts | Current Consumption | load-dependent |
| Power Contacts | Output Voltage | corresponds to Power contacts, Input voltage |
| Electrical Isolation | Channel/Channel | no |
| Electrical Isolation | Channel/Bus | functional, 707 V DC type test |
| Operating Temperature | -25…+55°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Installation Position | variable |
| Vibration Resistance | conforms to EN 60068-2-6 |
| Shock Resistance | conforms to EN 60068-2-27 |
| Emc Immunity | conforms to EN 61000-6-2 |
| Emc Emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | UL (in preparation) |
| Weight | 60 g |
| Protection Rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (Single) | 15 mm |
| Dimensions | Width (Lined Up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/Back Wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/Terminal | double slot and key connection |
| Plug In Wiring Level | no |
| Connection Cross Section | Solid Wire | 0.08…1.5 mm² |
| Connection Cross Section | Stranded Wire | 0.25…1.5 mm² |
| Connection Cross Section | With Ferrule | 0.14…0.75 mm² |
| Connection Cross Section Awg | Solid Wire | AWG28…16 |
| Connection Cross Section Awg | Stranded Wire | AWG22…16 |
| Connection Cross Section Awg | With Ferrule | AWG26…19 |
| Stripping Length | 8…9 mm |
| Power Contact | " " (Left) | yes |
| Power Contact | "+" (Rechts) | yes |
| Power Contact | " " (Right) | yes |
| Power Contact | "⏚" (Left) | no |
| Power Contact | "⏚" (Right) | no |
| Insertion Lock For Power Contact “⏚” | yes |
