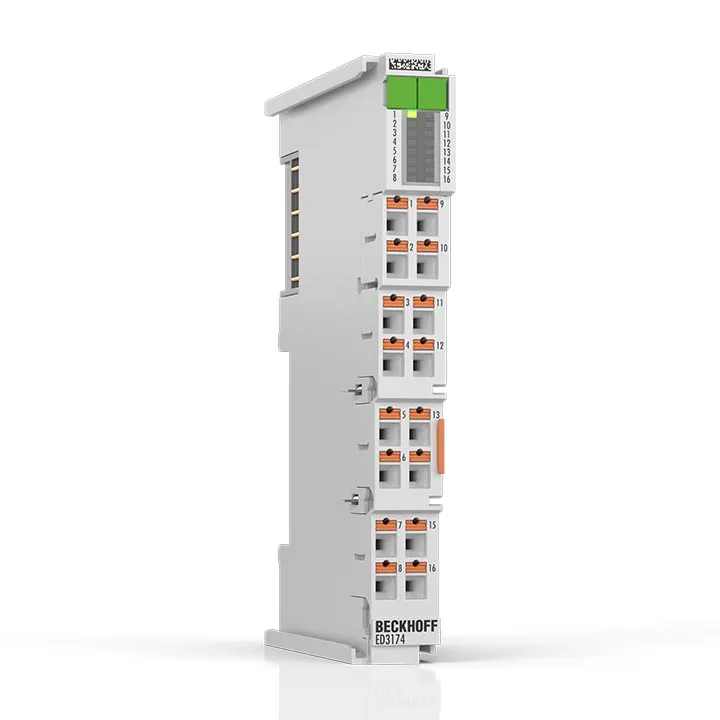

Beckhoff ED3174
The ED3174 analog input terminal is a universal 10 V/20 mA input module in the 16-bit class for demanding, dynamic control tasks. Input signals in the -10/0…+10 V or -20/0/+4…+20 mA ranges can be…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The ED3174 analog input terminal is a universal 10 V/20 mA input module in the 16-bit class for demanding, dynamic control tasks. Input signals in the -10/0…+10 V or -20/0/+4…+20 mA ranges can be processed per channel. Voltage and current signals are
Specification
| Number Of Channels | Total | 4 |
|---|---|
| Internal Communication Protocol | EtherCAT |
| Number Of Channels | max. 2 |
| Connection Technology | push-in |
| Resolution | Technical | 16 bits, including sign |
| Resolution | Process Data | 655.35… nA |
| Display | Process Data | REAL32, INT16 |
| Adc Conversion Method | SAR |
| Conversion Type | multiplex |
| Conversion Time | min. 100 µs per channel |
| Conversion Rate | max. 10 ksps per channel |
| Signal Range | Nominal | -20…+20 mA, 0…20 mA, 4…20 mA |
| Signal Range | Technical | -21.47…+21.47 mA |
| Signal Range | Full Scale Value (Fsv) | 20 mA |
| Internal Resistance/Impedance | typ. 85 Ω |
| Ground Reference | single-ended |
| Frequency Range | Input Signal | variable |
| Input Filter Limit Frequency | 5 kHz |
| Common Mode Voltage | ± 30 V |
| Accuracy/Uncertainty | Of The Fsv | typ. ±0.2% |
| Open Circuit Recognition | no |
| Overcurrent Protection | typ. 50 mA |
| Dielectric Strength | ± 30 V |
| Distributed Clocks | yes |
| Distributed Clocks | Precision | 1 µs |
| Distributed Clocks | Scope | 64 bit |
| Timestamp | no |
| Oversampling | no |
| Electronics | Supply Voltage | via E-bus |
| E Bus | Current Consumption | typ. 180 mA |
| Power Contacts | Input Voltage | max. 24 V DC (+20%) |
| Power Contacts | Current Carrying Capacity | max. 10 A |
| Power Contacts | Current Consumption | – |
| Power Contacts | Output Voltage | corresponds to Power contacts, Input voltage |
| Electrical Isolation | Channel/Channel | no |
| Electrical Isolation | Channel/Bus | functional, 707 V DC type test |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Installation Position | variable |
| Vibration Resistance | conforms to EN 60068-2-6 |
| Shock Resistance | conforms to EN 60068-2-27 |
| Emc Immunity | conforms to EN 61000-6-2 |
| Emc Emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | UL (in preparation) |
| Weight | 60 g |
| Protection Rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (Single) | 15 mm |
| Dimensions | Width (Lined Up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/Back Wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/Terminal | double slot and key connection |
| Plug In Wiring Level | no |
| Connection Cross Section | Solid Wire | 0.08…1.5 mm² |
| Connection Cross Section | Stranded Wire | 0.25…1.5 mm² |
| Connection Cross Section | With Ferrule | 0.14…0.75 mm² |
| Connection Cross Section Awg | Solid Wire | AWG28…16 |
| Connection Cross Section Awg | Stranded Wire | AWG22…16 |
| Connection Cross Section Awg | With Ferrule | AWG26…19 |
| Stripping Length | 8…9 mm |
| Power Contact | " " (Left) | yes |
| Power Contact | "+" (Rechts) | yes |
| Power Contact | " " (Right) | yes |
| Power Contact | "⏚" (Left) | no |
| Power Contact | "⏚" (Right) | no |
| Insertion Lock For Power Contact “⏚” | yes |
