Beckhoff ED2809
The ED2809 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with electrical isolation. The EtherCAT Terminal has…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

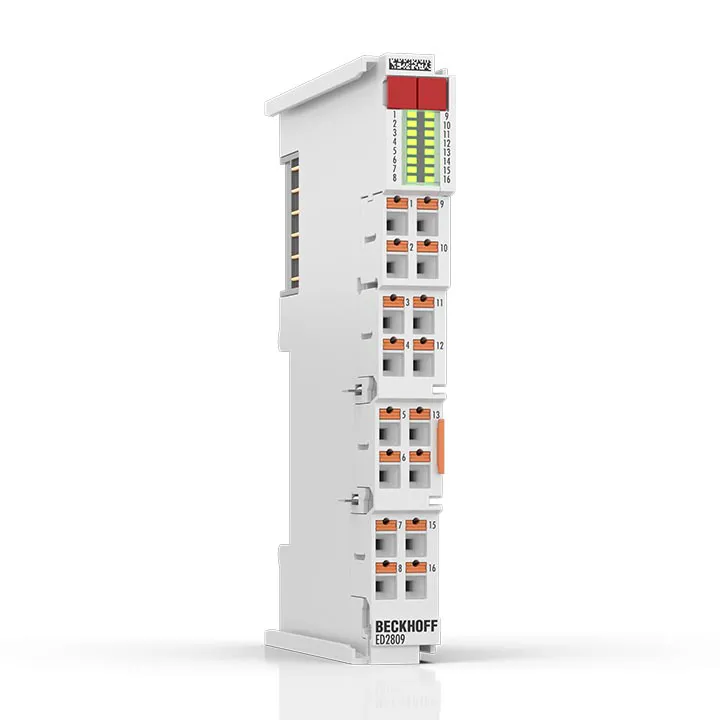

The ED2809 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with electrical isolation. The EtherCAT Terminal has 16 channels that indicate their signal state via light
Specification
| Number Of Channels | Total | 16 |
|---|---|
| Internal Communication Protocol | EtherCAT |
| Number Of Channels | 16 |
| Load Type | ohmic, inductive, capacitive |
| Connection Technology | push-in |
| Signal Range | Nominal | 24 V DC |
| Signal Range | Technical | 20.4…28.8 V DC |
| Output Current | max. 0.5 A per channel |
| Short Circuit Proof | yes |
| Short Circuit Current Limit | typ. 2 A |
| Output Stage | push |
| Switching Times | Ton | typ. 140 µs |
| Switching Times | Toff | typ. 300 µs |
| Reverse Voltage Protection | ja |
| Breaking Energy | Inductive | 150 mJ per channel |
| Distributed Clocks | no |
| Timestamp | no |
| Oversampling | no |
| Electronics | Supply Voltage | via E-bus, via power contacts |
| E Bus | Current Consumption | typ. 100 mA |
| Power Contacts | Input Voltage | 24 V DC (-15%/+20%) |
| Power Contacts | Current Carrying Capacity | max. 10 A |
| Power Contacts | Current Consumption | typ. 30 mA + load |
| Power Contacts | Output Voltage | corresponds to Power contacts, Input voltage |
| Electrical Isolation | Channel/Channel | no |
| Electrical Isolation | Channel/Bus | functional, 707 V DC type test |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Installation Position | variable |
| Vibration Resistance | conforms to EN 60068-2-6 |
| Shock Resistance | conforms to EN 60068-2-27 |
| Emc Immunity | conforms to EN 61000-6-2 |
| Emc Emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | UL (in preparation) |
| Weight | 60 g |
| Protection Rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (Single) | 15 mm |
| Dimensions | Width (Lined Up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/Back Wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/Terminal | double slot and key connection |
| Plug In Wiring Level | no |
| Connection Cross Section | Solid Wire | 0.08…1.5 mm² |
| Connection Cross Section | Stranded Wire | 0.25…1.5 mm² |
| Connection Cross Section | With Ferrule | 0.14…0.75 mm² |
| Connection Cross Section Awg | Solid Wire | AWG28…16 |
| Connection Cross Section Awg | Stranded Wire | AWG22…16 |
| Connection Cross Section Awg | With Ferrule | AWG26…19 |
| Stripping Length | 8…9 mm |
| Power Contact | " " (Left) | yes |
| Power Contact | "+" (Rechts) | yes |
| Power Contact | " " (Right) | yes |
| Power Contact | "⏚" (Left) | no |
| Power Contact | "⏚" (Right) | no |
| Insertion Lock For Power Contact “⏚” | yes |
