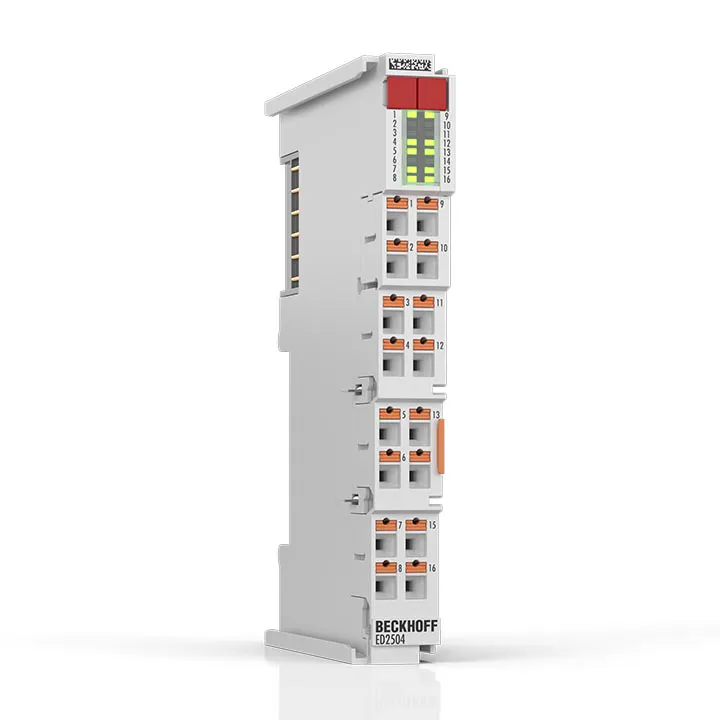

Beckhoff ED2504
The ED2504 EtherCAT Terminal offers up to four digital outputs, which are output as pulse-width modulated signals. The output signal can be modulated in both pulse width and frequency in the range of…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The ED2504 EtherCAT Terminal offers up to four digital outputs, which are output as pulse-width modulated signals. The output signal can be modulated in both pulse width and frequency in the range of 1 Hz to 64 kHz. The output level is determined by the
Specification
| Number Of Channels | Total | max. 8 |
|---|---|
| Internal Communication Protocol | EtherCAT |
| Number Of Channels | max. 4 |
| Load Type | ohmic, inductive, lamp load |
| Signal Range | Technical | 5…24 V DC (+20 %) (external supply) |
| Output Current | max. 1 A per channel |
| Short Circuit Proof | yes |
| Output Stage | push-pull |
| Pulse Duration | Ton | typ. > 320 ns |
| Pulse Duration | Toff | typ. > 320 ns |
| Duty Factor | 0…100% |
| Resolution | 10…16 bit |
| Output Frequency | 1 Hz…64 kHz |
| Reverse Voltage Protection | yes |
| Function | digital input, hardware gate, tacho |
| Connection Technology | push-in |
| “0” Signal Voltage | 2.5…28 V DC |
| “1” Signal Voltage | -3…+1 V DC |
| Input Filter | typ. 1 µs, 0.1 ms, 0.5 ms, 1 ms, 3 ms, 10 ms, 20 ms (adjustable) |
| Input Current | typ. 2 mA at 24 V DC |
| Cable Length | Sensor Cable | max. 30 m |
| Distributed Clocks | no |
| Timestamp | no |
| Oversampling | no |
| Electronics | Supply Voltage | via E-bus, via power contacts |
| E Bus | Current Consumption | typ. 110 mA |
| Power Contacts | Input Voltage | 24 V DC (-15%/+20%) |
| Power Contacts | Current Carrying Capacity | max. 10 A |
| Power Contacts | Current Consumption | typ. 40 mA + load |
| Power Contacts | Output Voltage | 24 V DC (-15%/+20%) |
| Electrical Isolation | Channel/Channel | no |
| Electrical Isolation | Channel/Bus | functional, 707 V DC type test |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Installation Position | variable |
| Vibration Resistance | conforms to EN 60068-2-6 |
| Shock Resistance | conforms to EN 60068-2-27 |
| Emc Immunity | conforms to EN 61000-6-2 |
| Emc Emission | conforms to EN 61000-6-4 |
| Markings | CE |
| Approvals | UL (in preparation) |
| Weight | 60 g |
| Protection Rating | IP20 |
| Material | polycarbonate |
| Dimesnions | Width (Single) | 15 mm |
| Dimensions | Width (Lined Up) | 12 mm |
| Dimensions | Height | 100 mm |
| Dimensions | Depth | 65 mm |
| Installation | Terminal/Back Wall | DIN rail, 35 mm (EN 60715) |
| Installation | Terminal/Terminal | double slot and key connection |
| Plug In Wiring Level | no |
| Connection Cross Section | Solid Wire | 0.08…1.5 mm² |
| Connection Cross Section | Stranded Wire | 0.25…1.5 mm² |
| Connection Cross Section | With Ferrule | 0.14…0.75 mm² |
| Connection Cross Section Awg | Solid Wire | AWG28…16 |
| Connection Cross Section Awg | Stranded Wire | AWG22…16 |
| Connection Cross Section Awg | With Ferrule | AWG26…19 |
| Stripping Length | 8…9 mm |
| Power Contact | " " (Left) | yes |
| Power Contact | "+" (Rechts) | yes |
| Power Contact | " " (Right) | yes |
| Power Contact | "⏚" (Left) | no |
| Power Contact | "⏚" (Right) | no |
| Insertion Lock For Power Contact “⏚” | yes |
