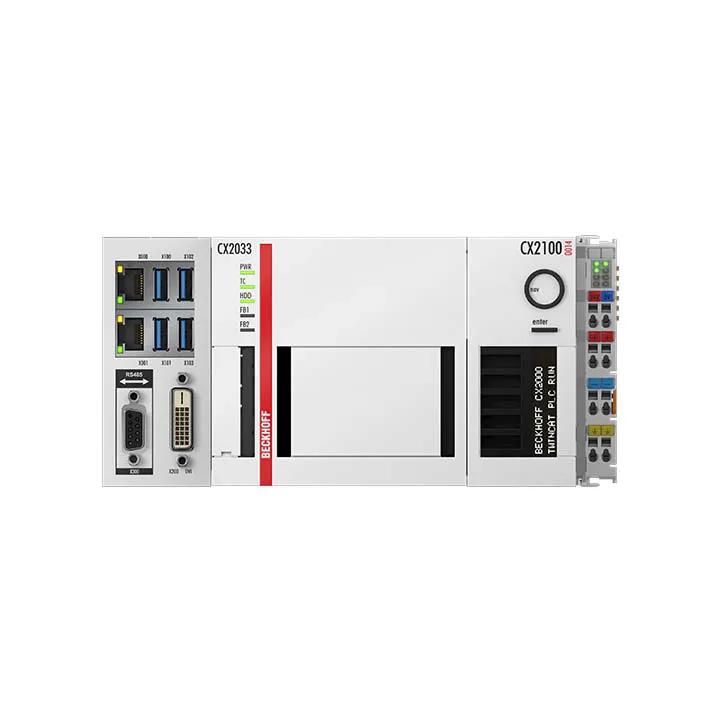

Beckhoff CX2033
The CX2033 is a modularly expandable Embedded PC for DIN rail mounting and has an AMD Ryzen™ V1202B CPU with a clock speed of 2.3 GHz and two cores. The power supply unit required for operation enable…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The CX2033 is a modularly expandable Embedded PC for DIN rail mounting and has an AMD Ryzen™ V1202B CPU with a clock speed of 2.3 GHz and two cores. The power supply unit required for operation enables the direct use and connection of all Beckhoff I/O
Specification
| Processor | AMD Ryzen™ V1202B 2.3 GHz |
|---|---|
| Number Of Cores | 2 |
| Flash Memory | slot for CFast card, card not included |
| Main Memory | 8 GB DDR4 RAM (expandable ex factory to 16 GB) |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.2 Gen. 2, 1 x optional interface |
| Cooling | passive, optionally with active cooling ex factory |
| Diagnostics Led | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating System | Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, TwinCAT/BSD, Beckhoff RT Linux® |
| Control Software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O Connection | via power supply module (E-bus or K-bus, automatic recognition) |
| Power Supply | 24 V DC (-15%/+20%) |
| Ups Oct Capable | yes (depending on power supply unit) |
| N O V R A M | 128 kB |
| Max. Power Consumption | 42 W |
| Weight | approx. 1165 g |
| Dimensions (W X H X D) | 144 mm x 99 mm x 91 mm |
| Relative Humidity | 95%, no condensation |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection Rating | IP20 |
| Approvals/Markings | CE, UL |
| Twincat 3 Platform Level | Performance Plus (50); please see here for an overview of all the TwinCAT 3 platform level |
