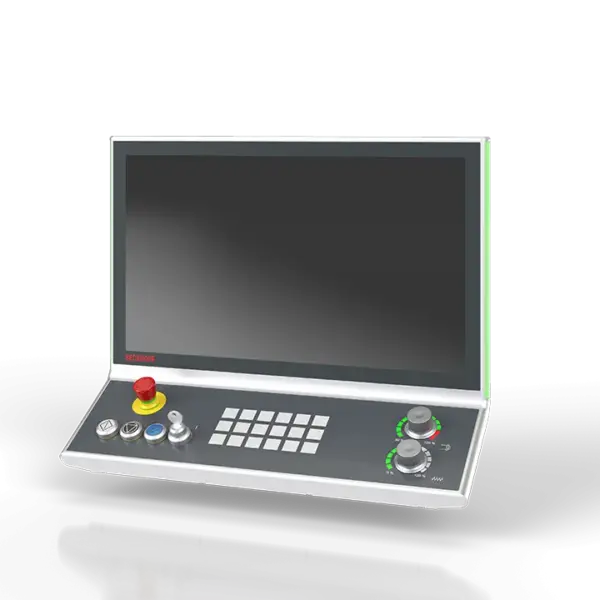

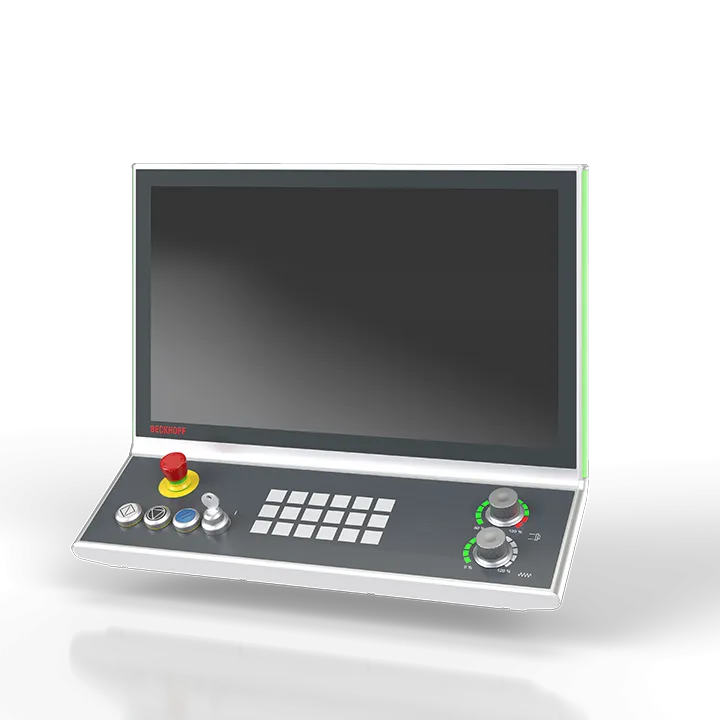

Beckhoff CP3921-1512-0000
The Control Panels in the CP39xx-151x-00×0 series, featuring an angled push-button extension in a special CNC function design, are control and operating devices specifically designed for CNC applicati…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The Control Panels in the CP39xx-151x-00×0 series, featuring an angled push-button extension in a special CNC function design, are control and operating devices specifically designed for CNC applications. In addition, the CP3921-1512-00×0 have an LED
Specification
| Device Type | Multi-touch Control Panel with DVI/USB Extended interface |
|---|---|
| Housing | aluminum housing with glass front and LED status bar |
| Display Size/Resolution | 21.5-inch display 1920 x 1080 |
| Touch Screen | multi-finger touch screen |
| Protection Rating | IP65 |
| Connection Technology | DVI-E and USB-E enables to connect the Control Panel at a distance of up to 50Â m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USBÂ 2.0 with 480Â Mbit/s. |
| Mounting Arm Adapter | connection block with 4 M6 threaded holes each with a distance of 100 x 100Â mm and 70 x 130Â mm at the rear panel of the control panel |
| Interfaces | 1 x round connector IP65 M23 19-pin for power supply of the Control Panel and CNC extension 1 x USB-EÂ 2.0 1 x DVI-E input |
| Operating Temperature | 0…55°C |
