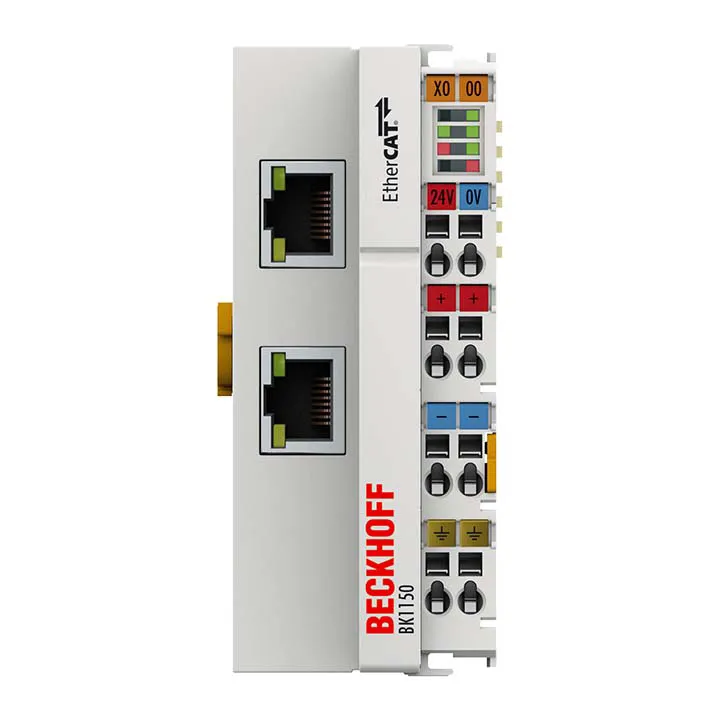

Beckhoff BK1150
The BK1150 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the Bus Terminals. The coupler converts the passing telegrams from Ethernet 100BASE-TX to the internal, fiel…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The BK1150 EtherCAT Coupler is the link between the EtherCAT protocol at fieldbus level and the Bus Terminals. The coupler converts the passing telegrams from Ethernet 100BASE-TX to the internal, fieldbus-independent terminal bus. A station consists of a
Specification
| Number Of Bus Terminals | 64 (255 with K-bus extension) |
|---|---|
| Max. Number Of Bytes Fieldbus | 1024 byte input and 1024 byte output |
| Configuration | via KS2000 or EtherCAT (ADS) |
| Data Transfer Rates | 100 Mbit/s |
| Bus Interface | 2 x RJ45 |
| Data Transfer Medium | Industrial Ethernet cable (min. Cat.5), shielded |
| Power Supply | 24 V DC (-15%/+20%) |
| Input Current | 70 mA + (total K-bus current)/4, 500Â mA max. |
| Starting Current | approx. 2.5 x continuous current |
| Recommended Fuse | ≤ 10 A |
| Current Supply K Bus | 1750 mA |
| Power Contacts | max. 24 V DC/max. 10 A |
| Electrical Isolation | 500 V (power contact/supply voltage/Ethernet) |
| Distance Between Stations | 100 m (100BASE-TX) |
| Data Transfer Time | typ. 0.01 ms in the case of 10 modules for 32 bit inputs and outputs each (without K-bus run-time) |
| Dimensions (W X H X D) | 44 mm x 100 mm x 68 mm |
| Weight | approx. 110 g |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP20/variable |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx |
| Ex Marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Design Form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection Cross Section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection Cross Section Awg | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping Length | 8…9 mm |
| Current Load Power Contacts | Imax: 10 A |
