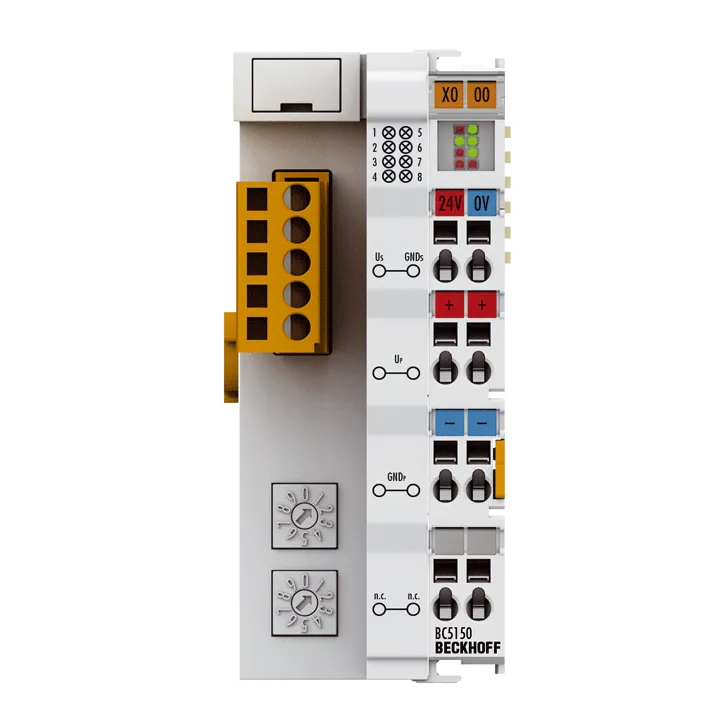

Beckhoff BC5150
The Bus Terminal Controllers are Bus Couplers with integrated PLC functionality. The Compact BC5150 Bus Terminal Controller for CANopen extends the Beckhoff small controller series by a cost-optimized…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The Bus Terminal Controllers are Bus Couplers with integrated PLC functionality. The Compact BC5150 Bus Terminal Controller for CANopen extends the Beckhoff small controller series by a cost-optimized version in a compact housing. The CANopen controller
Specification
| Programming | TwinCAT (via programming interface or fieldbus) |
|---|---|
| Program Memory | 48 kbytes |
| Data Memory | 32 kbytes |
| Remanent Data | 2 kbytes |
| Runtime System | 1 PLC task |
| Plc Cycle Time | approx. 3 ms for 1,000 instructions (without I/O cycle, K-bus) |
| Programming Languages | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
| Online Change | yes |
| Number Of Bus Terminals | 64 (255 with K-bus extension) |
| Max. Number Of Bytes Fieldbus | 16 Tx/Rx PDOs |
| Max. Number Of Bytes Process Image | 512 byte input and 512 byte output |
| Digital Peripheral Signals | 2,040 inputs/outputs |
| Analog Peripheral Signals | 1024 inputs/outputs |
| Data Transfer Rates | automatic detection up to 1 Mbaud |
| Bus Interface | open style connector, 5-pin |
| Interfaces | programming and configuration interface |
| Configuration | via KS2000 or fieldbus |
| Power Supply | 24 V DC (-15%/+20%) |
| Input Current | 60 mA + (total K-bus current)/4 |
| Current Supply K Bus | 1750 mA |
| Power Contacts | max. 10 A |
| Electrical Isolation | 500 V (power contact/supply voltage) |
| Weight | approx. 100 g |
| Operating Temperature | -25…+60°C |
| Storage Temperature | -40…+85°C |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock Resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Emc Immunity/Emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. Rating/Installation Pos. | IP20/variable |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx |
| Ex Marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Design Form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side By Side Mounting By Means Of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection Cross Section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Stripping Length | 8…9 mm |
| Current Load Power Contacts | Imax: 10 A |
| Dimensions (W X H X D) | 44 mm x 100 mm x 68 mm |
