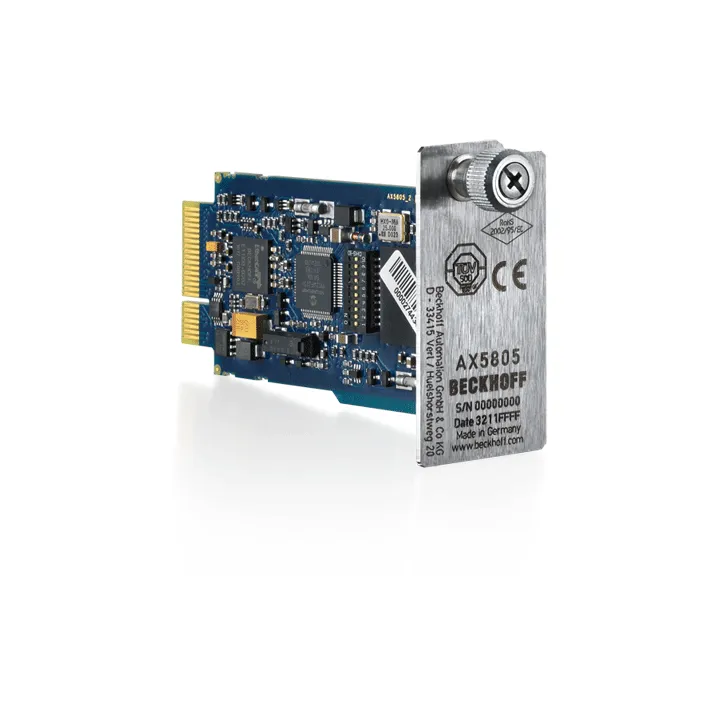

Beckhoff AX5805
The AX5805 TwinSAFE component is an option card for the AX5000 servo drive series from 1.5 A to 40 A and enables the implementation of safety-relevant drive functions. These functions are controlled v…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The AX5805 TwinSAFE component is an option card for the AX5000 servo drive series from 1.5 A to 40 A and enables the implementation of safety-relevant drive functions. These functions are controlled via FSoE by a TwinSAFE Logic-capable component.
Specification
| Function | TwinSAFE option card |
|---|---|
| Drive Profile | FSoE |
| Safe Acceleration Functions | Safe Maximum Acceleration (SMA), Safe Acceleration Range (SAR) |
| Safe Direction Functions | Safe Direction positive (SDIp), Safe Direction negative (SDIn) |
| Safe Speed Functions | Safe Speed Range (SSR), Safely Limited Speed (SLS), Safe Speed Monitor (SSM), Safe Maximum Speed (SMS) |
| Safe Position Functions | Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI) |
| Safe Stop Functions | Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Stop 2 (SS2), Safe Operating Stop (SOS) |
| Safety Standard | EN ISO 13849-1:2015 (Cat. 4, PL e) and IEC 61508:2010 (SIL 3) |
| Realization Sto | via FSoE |
| Approvals/Markings | CE, cULus |
| Ambient Temperature (Operation) | 0…50°C |
