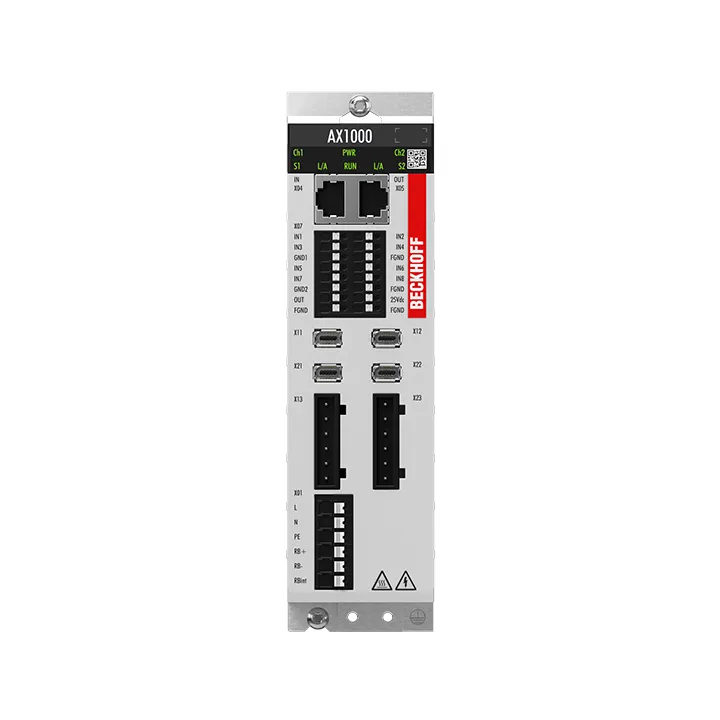

Beckhoff AX1203-1301-0000
The AX1000 economy servo drives are a particularly cost-efficient series that meets the highest technological standards. The AX1203-1xxx dual-axis module is available in the low power range with a rat…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The AX1000 economy servo drives are a particularly cost-efficient series that meets the highest technological standards. The AX1203-1xxx dual-axis module is available in the low power range with a rated output current of 3.4Â A with a single-phase supply
Specification
| Function | servo drive with Safe Motion |
|---|---|
| Channels | 2 |
| Rated Supply Voltage | 1 x 110…240 V AC |
| Dc Link Voltage | max. 420 V DC |
| Rated Output Current (Channel) | 3.4Â A |
| Peak Output Current (Channel) | 12Â A |
| Feedback | OCT |
| System Bus | EtherCAT |
| Drive Profile | CiA402 according to IEC 61800-7-201 (CoE) |
| Realization Sto | via FSoE |
| Safe Stop Functions | Safe Torque Off (STO), Safe Operating Stop (SOS), Safe Stop 1 (SS1), Safe Stop 2 (SS2) |
| Safe Acceleration Functions | Safe Maximum Acceleration (SMA), Safe Acceleration Range (SAR) |
| Safe Braking Functions | Safe Brake Control (SBC), Safe Brake Test (SBT) |
| Safe Direction Functions | Safe Direction positive (SDIp), Safe Direction negative (SDIn) |
| Safe Speed Functions | Safely Limited Speed (SLS), Safe Speed Range (SSR), Safe Speed Monitor (SSM), Safe Maximum Speed (SMS) |
| Safe Position Functions | Safely Limited Position (SLP), Safe CAM (SCA), Safely Limited Increment (SLI) |
| Safety Standard | EN ISO 13849-1:2015 (Cat 4, PL e), EN 61508:2010 (SILÂ 3) and EN 62061:2005 + A1:2013/A2:2015 (SIL CL3) |
| Ambient Temperature (Operation) | 0…40°C, up to 55°C with power reduction (see documentation) |
| Approvals/Markings | CE, cULus (in preparation) |
| Protection Rating | IP20 |
| Width | 50Â mm |
| Height | 164Â mm |
| Depth | 185Â mm |
