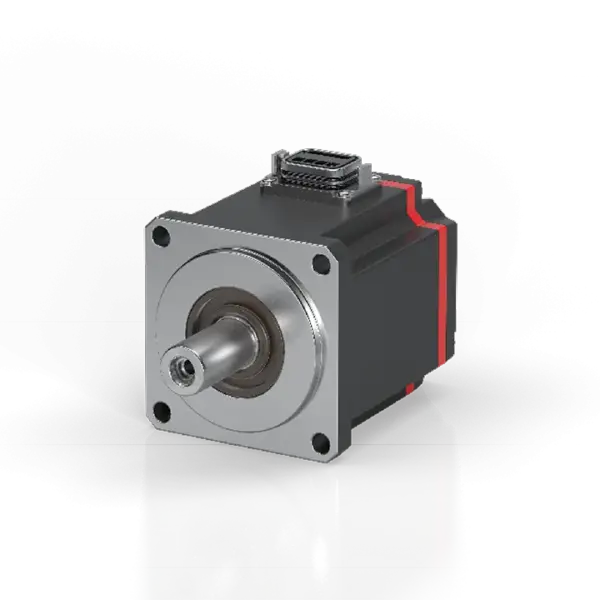

Beckhoff AM1022-wFyz
The AM1022 economy servomotor is suitable for drive solutions that have very high demands in terms of dynamics and performance in the 110…480 V AC voltage range. The motor’s standstill torque is 1.34 …
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
The AM1022 economy servomotor is suitable for drive solutions that have very high demands in terms of dynamics and performance in the 110…480 V AC voltage range. The motor’s standstill torque is 1.34 Nm and it can be combined with the AX1103-1xxx
Specification
| Motor Type | permanent magnet-excited three-phase synchronous motor |
|---|---|
| Standstill Torque | 1.34 Nm |
| Nominal Voltage | 110…480 V AC |
| Rated Torque | 1.27 Nm |
| Peak Torque | 4.40 Nm |
| Rated Speed | 3000 min-1 |
| Rated Power | 0.40 kW |
| Standstill Current | 3.40 A |
| Peak Current | 11.9 A |
| Torque Constant | 0.394 Nm/A |
| Motor Feedback | OCT, single-turn or multi-turn absolute encoder, electronic nameplate |
| Cooling | convection |
| Ambient Temperature (Operation) | 5…40°C |
| Approvals/Markings | CE, cURus in preparation |
| Protection Rating | IP54, IP65 (shaft seal) |
| Design Form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/Surface | CDC, black, similar to RAL9005 |
| Motor Length Without Shaft (Without Brake) | 87.5 mm |
| Motor Length Without Shaft (With Brake) | 116.0 mm |
