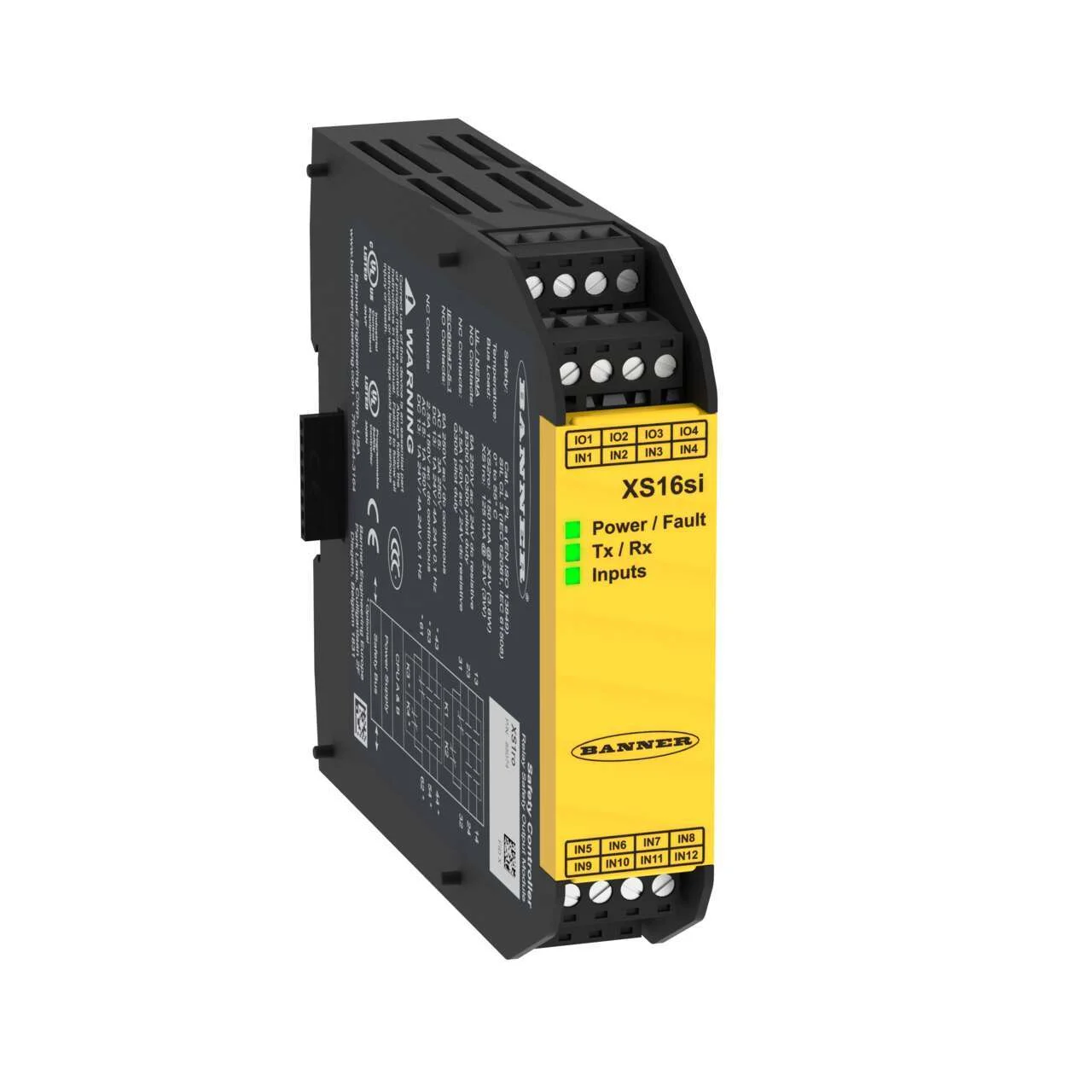

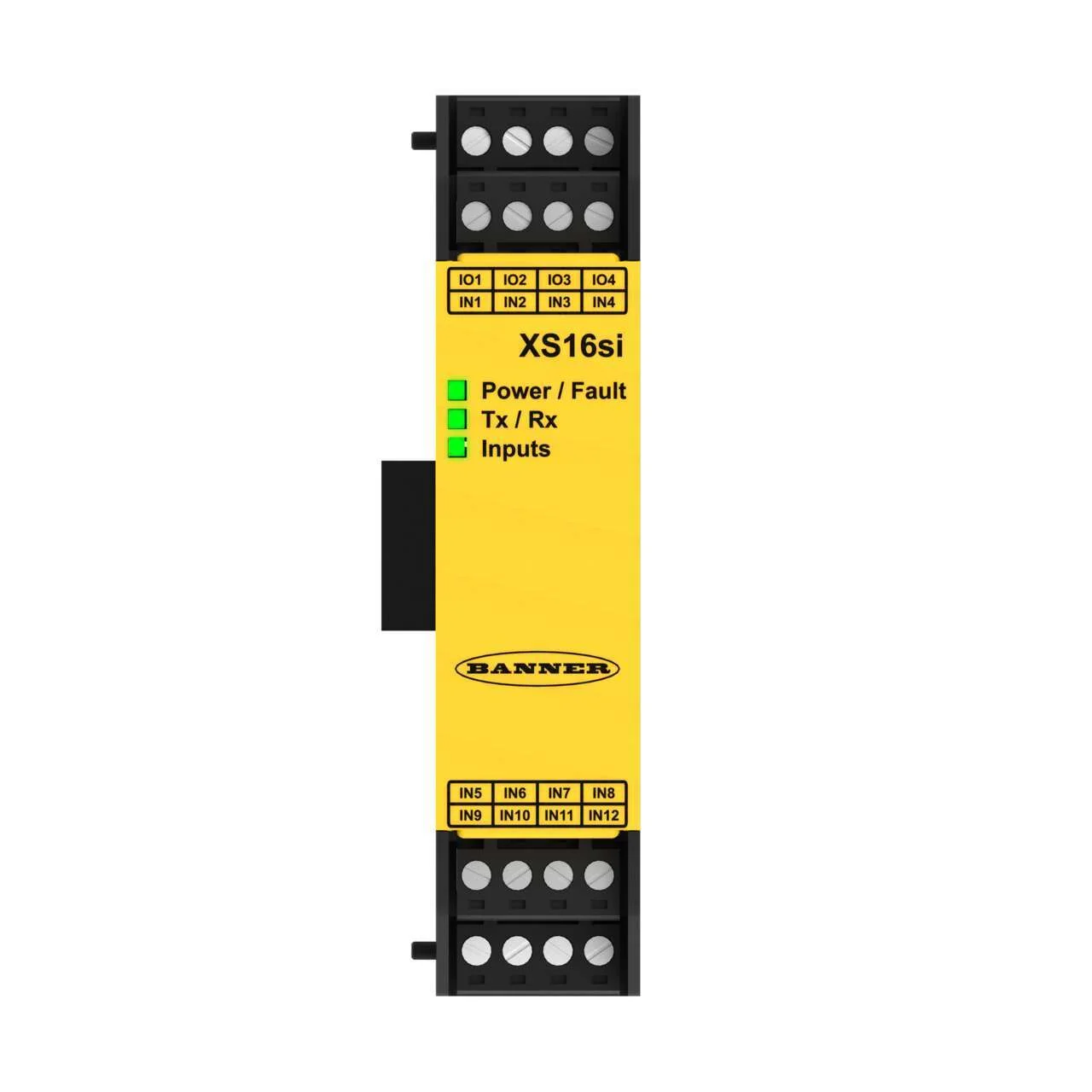

Banner Engineering XS16SI
Safety Controller Expansion Module: 16 Terminal Input Module
4 Convertible inputs; Removable Screw Terminals
Used with XS26-2 Safety Controllers
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety Controller Expansion Module: 16 Terminal Input Module
4 Convertible inputs; Removable Screw Terminals
Used with XS26-2 Safety Controllers
Specification
| Ip Rating | IP20 |
|---|---|
| Ether C A T | No |
| Network View And Configure | No |
| Item Status | RELEASED |
| Device Type | Safety Controller |
| In Series Diagnostics | No |
| Safety Module Type | Input Module |
| Lcd Display | No |
| Expandable | Yes |
| Dimension (H X W X D In Mm) | 110 x 22.5 x 129 |
| Relative Humidity | 90% @ 50° C |
| Max Operating Temperature (C) | 55 |
| Input Operation | Simultaneous or Concurrent |
| Number Of Safe Inputs | 16 |
| Input Configuration | Configurable |
| Number Of Convertible Inputs | 4 |
| Safety Input Dual Channel (Dry Contact) | 5-50 mA @ 24 V dc |
| Safety Input Dual Channel (Solid State) | 50 mA @ 15 – 30 V dc |
| Safety Input Reset | 5-50 mA @ 24 V dc |
| Non Safe Output Configuration | Up to 4 PNP |
| Non Safe Output Rating | 80 mA @ 24 V dc (individual) maximum; overcurrent protected |
| Safe Output Rating | N/A |
| Splittable Safe Output | No |
| Power Consumption | 0.09 A (no load); 0.41 A (full load) |
| Response Time (Ms) | See Software Configuration Summary |
| Terminal Type | Screw |
| Removable Terminals | Yes |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Pl Rating | e |
| Safety Category Rating | 4 |
| Sil Rating | 3 |
| S I S T E M A | PFHd = 4 x 10-10 |
| Thc Rating | IIIC |
| Safety Input Single Channel | 5-50 mA @ 24 V dc |
| Input Resistance | 150 Ω max. per lead |
| E Stops/Rope Pulls | Yes |
| Safety Mat | Yes |
| Motor Speed | No |
| Two Hand Controls | Yes |
| Muting | Yes |
| Gate Switch (Nc/Nc) Input | Yes |
| Gate Switch (Nc/No) Input | Yes |
| Gate Switch (Ossd) Input | Yes |
| Light Curtains/Scanner With Edm Input | Yes |
| Light Curtains/Scanner Without Edm Input | Yes |
| Ether Net/ I P | No |
| Common Ethernet Protocol | No |
| Modbus/ T C P | No |
| P C C C | No |
| P R O F I N E T | No |
| Recovery Time | 250 (typical), 400 (max) |
| Eplan Status | Published |
| Eplan Original Sent Date | 06/20/2022 |
